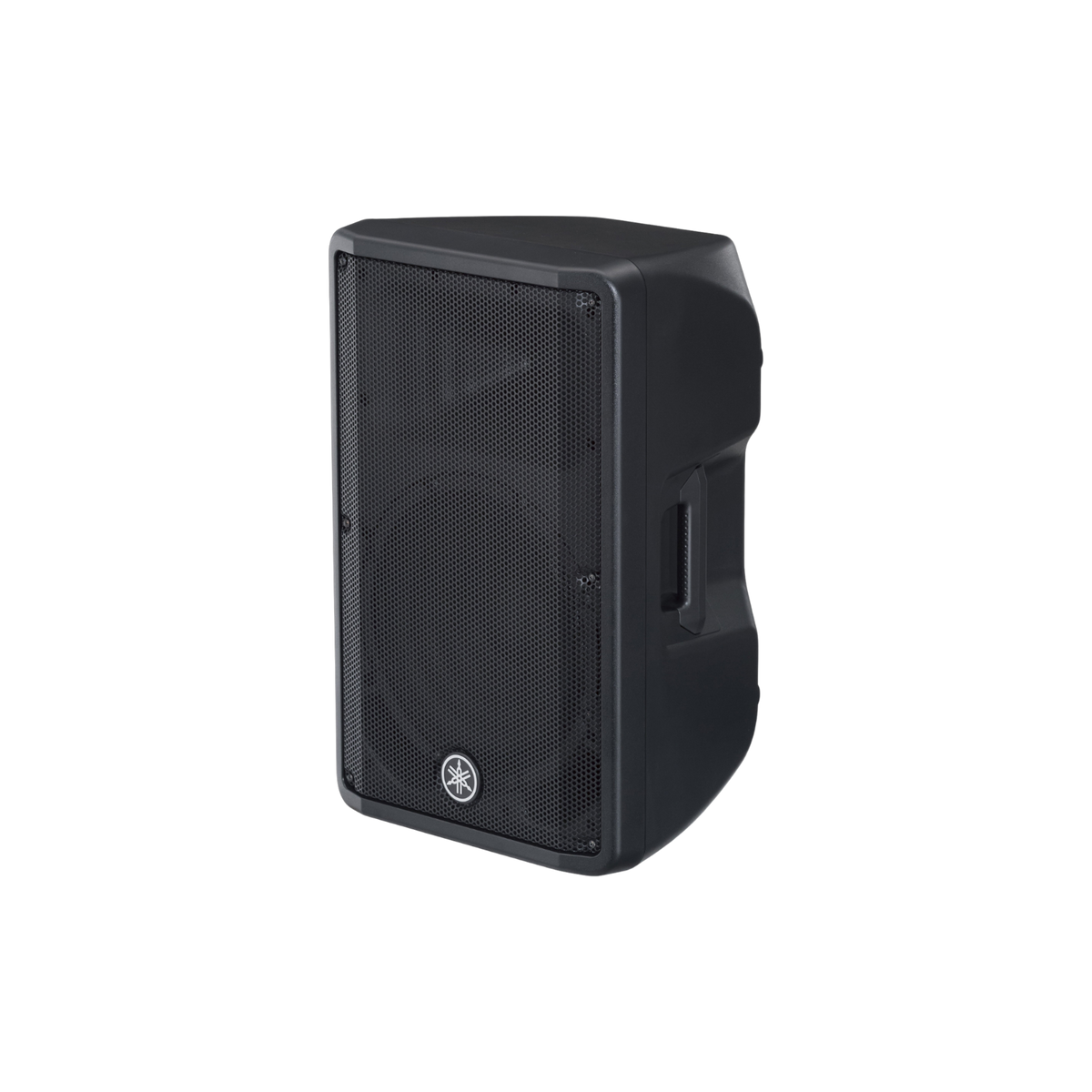

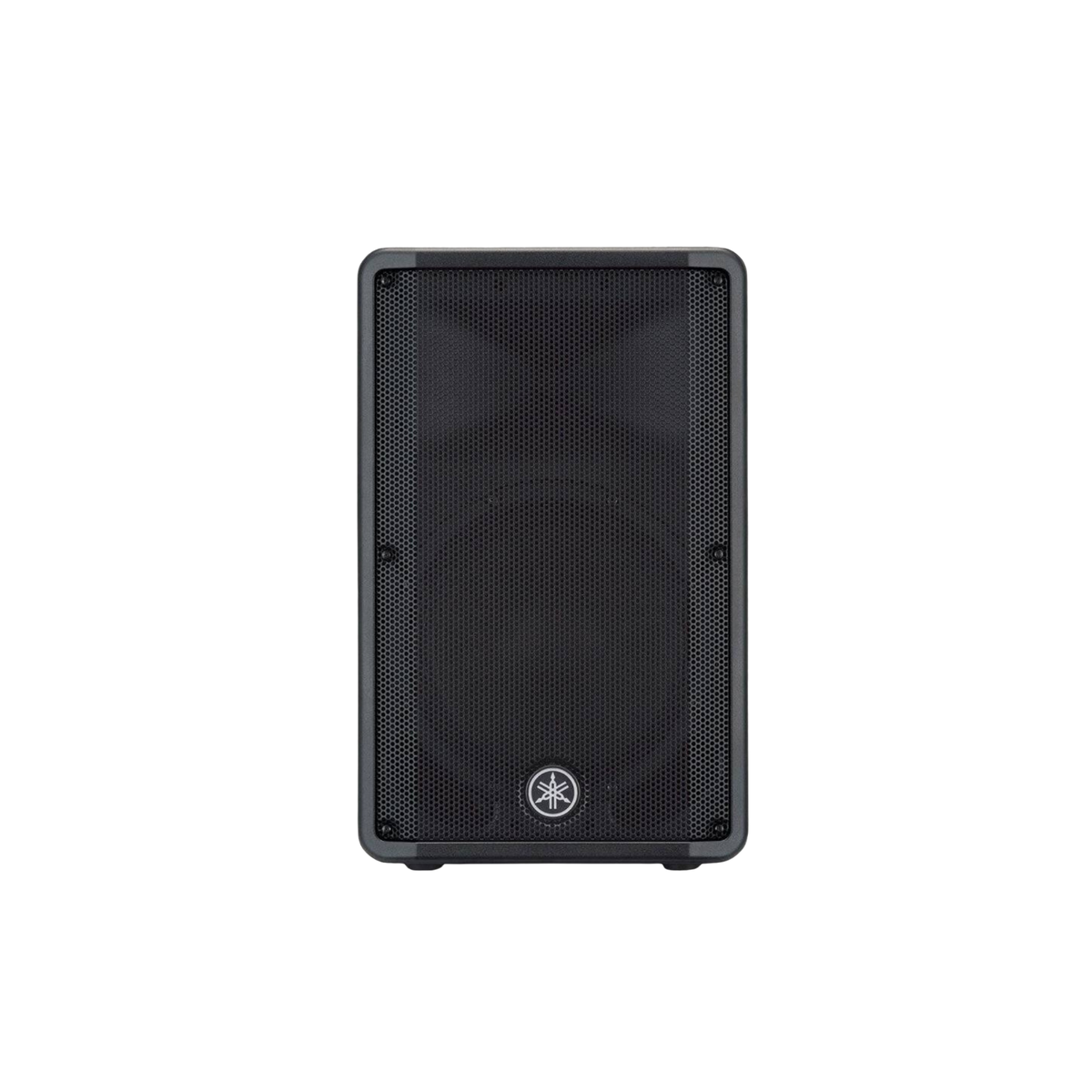

Yamaha DBR12 800W 12" Powered Speaker

Yamaha DBR12 800W 12" Powered Speaker

The Yamaha 12" Powered Speaker is an excellent speaker with clear-as-glass sound that will help your music be heard no matter what! With the guaranteed quality that comes from Yamaha, this speaker is a definite yes!

The DBR12 represents a perfect balance of size and performance, with 1000W of power and outstanding resolution at any output level. Ideal for front-of-house, floor monitoring applications or even the stage side fills, the DBR12 is an ideal choice for a wide range of applications.

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.*DBR10 features a 1" compression driver.

A Rugged, Highly Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

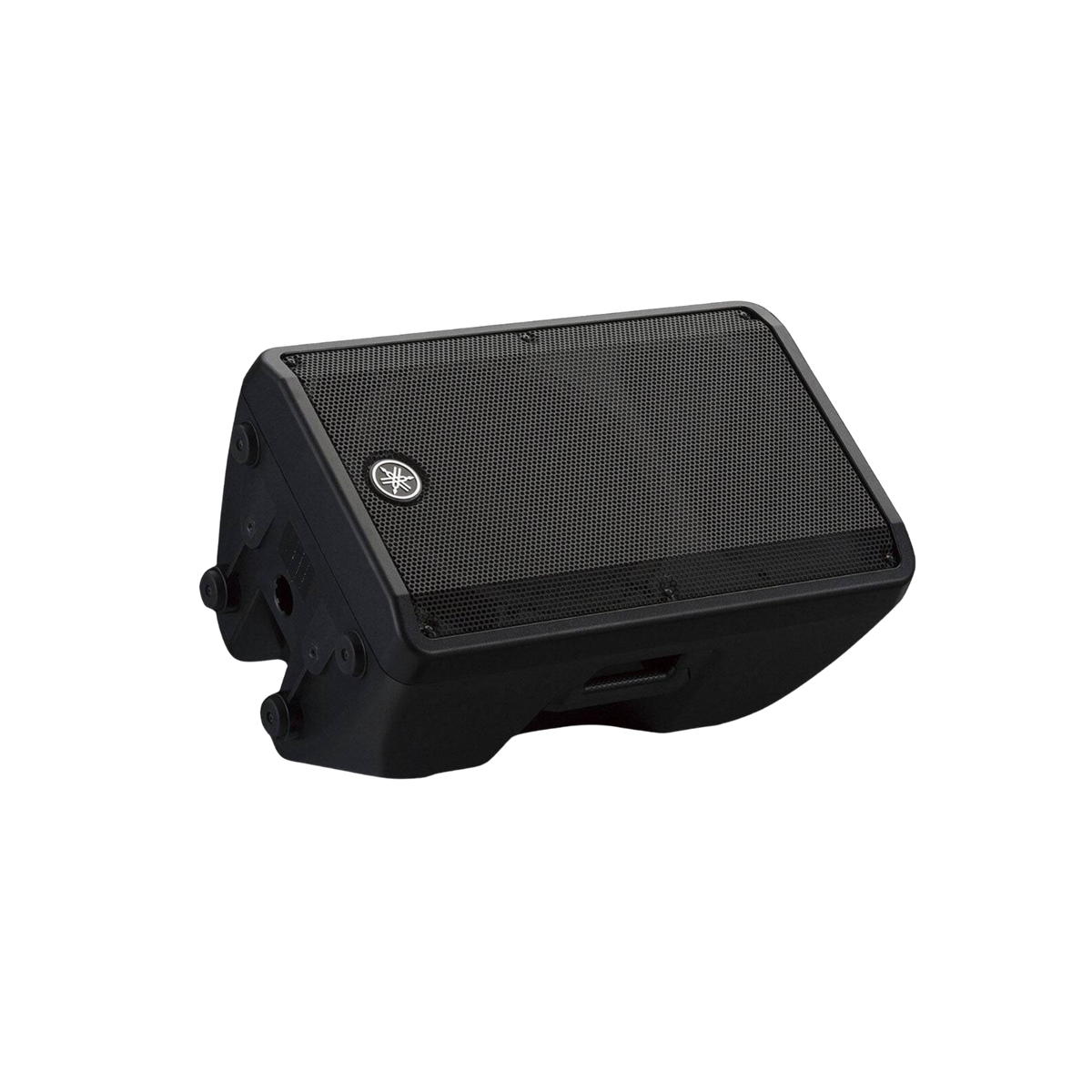

Smart Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

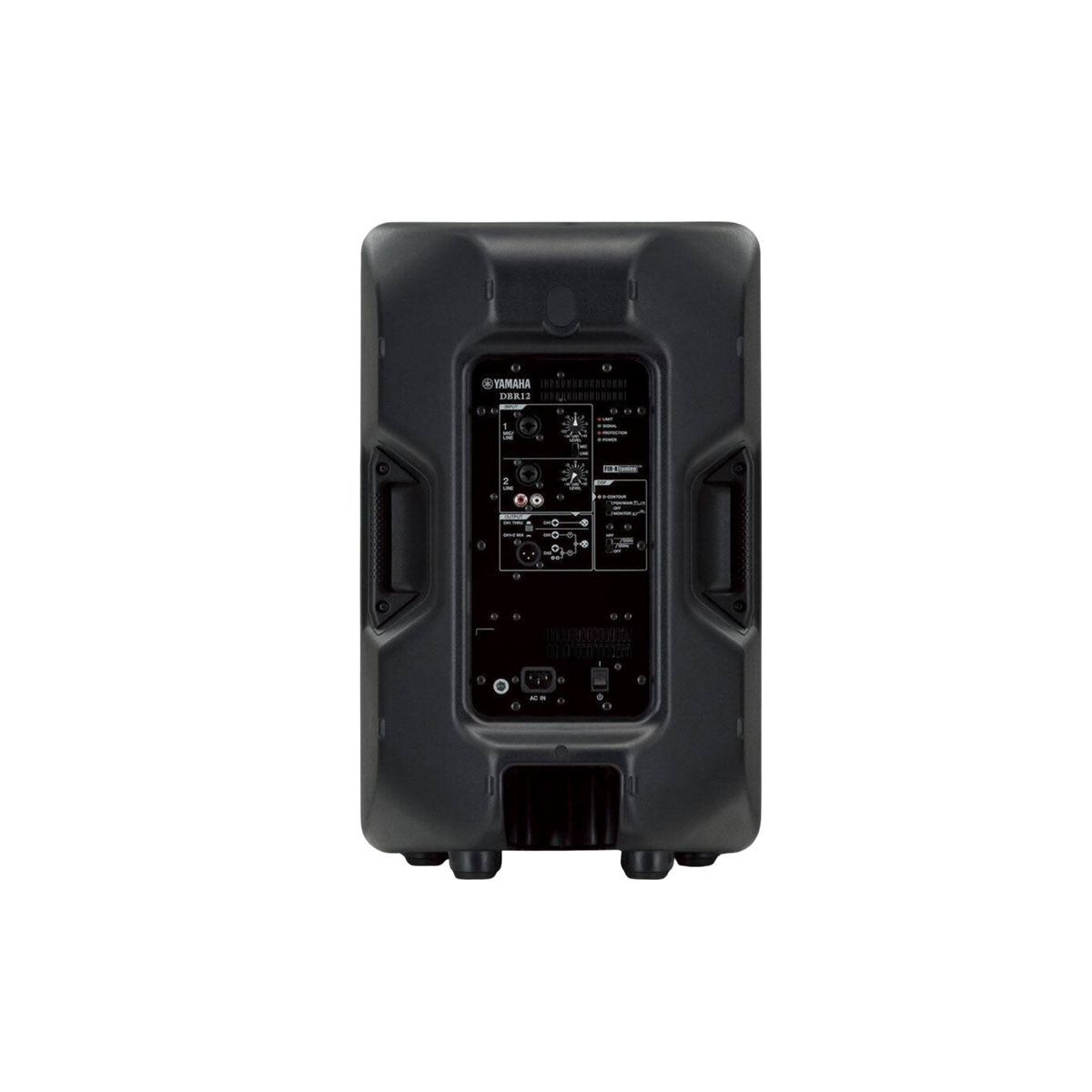

Easy-to-use Onboard 2-Channel Mixer
DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.*Speaker brackets and eye-bolts are not included.

Highlights

• Custom Designed Transducer
• Easy-to-use Onboard 2-Channel Mixer
• Smart Enclosure Design for Floor Monitoring
• High-Efficiency 1000W Class-D Amplifiers
• The DBR's lightweight, high performance Class-D amplifier is capable of producing up to 1000W* of power, achieving an SPL of 132dB, delivered with remarkable clarity and dynamic characteristics.*DBR10 has an output level of 700W.
• The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.*DBR10 features a 1" compression driver.

Specifications

• Powered:Yes
• Power Configuration:Bi-amped
• LF Driver Size:1 x 12"
• HF Driver Size:1.4"
• LF Driver Power Amp:800W
• HF Driver Power Amp:200W
• Total Power:1000W
• Inputs:2 x XLR/TRS Combo, 1 x Stereo
• Outputs:1 x XLR
• Frequency Range:52Hz-20kHz (-10dB)
• Crossover Frequency:2.1kHz
• Maximum Peak SPL:131dB
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Enclosure Material:Plastic
• Mounting Options:Pole Mount with 1.37" socket, Floor Wedge, 3 x M8 Fly Points
• Power Source:Standard IEC AC cable
• Height:23.7"
• Width:14.8"
• Depth:13.7"
• Weight:34.8 lbs.
• Manufacturer Part Number:DBR12

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
