Sennheiser EW 500 G4-935 Wireless Handheld Microphone System (AW+ Band)

Sennheiser EW 500 G4-935 Wireless Handheld Microphone System (AW+ Band)

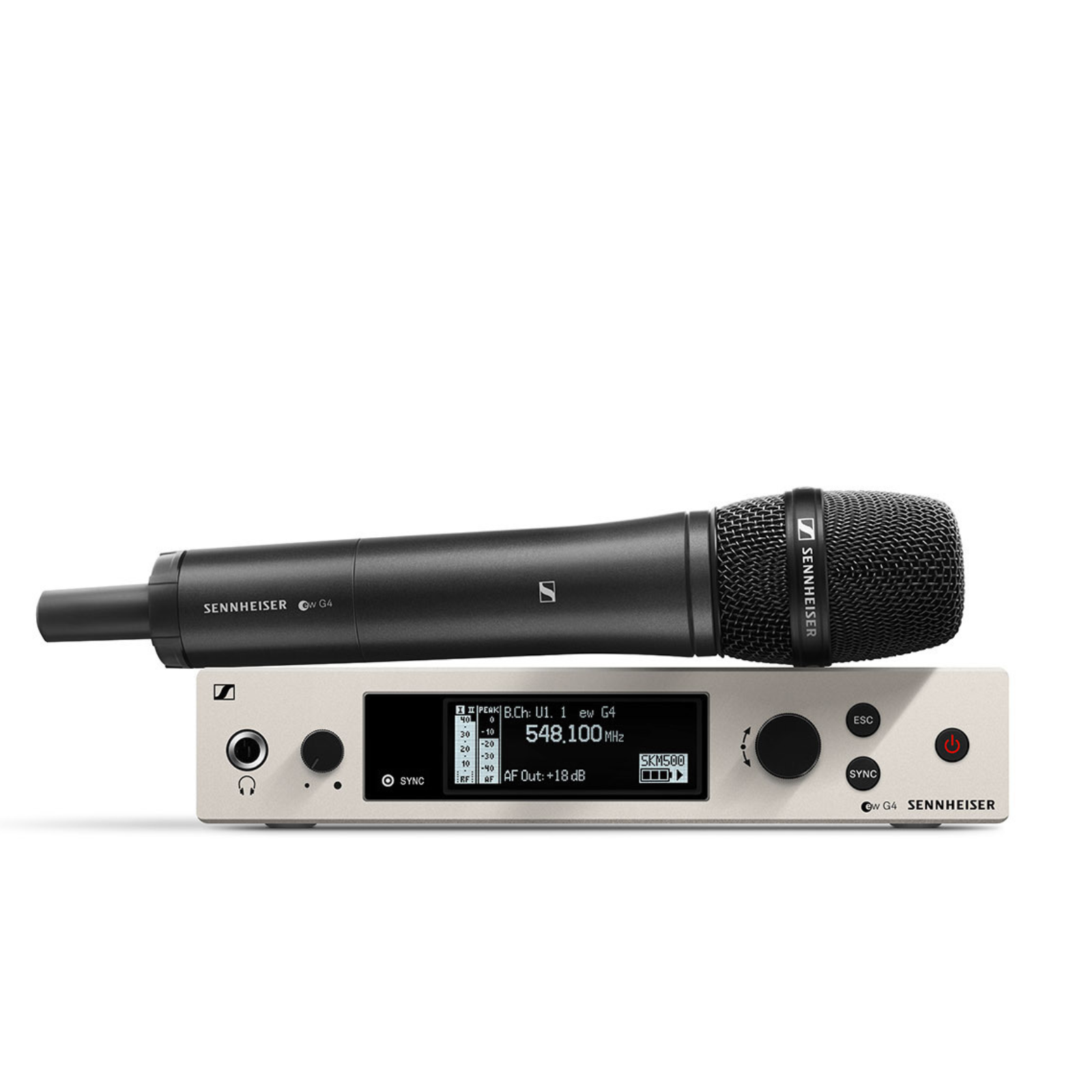

For Professional Live Performances, this set consists of 1 SKM 500 G4 handheld, 1 MMD 935-1 Cardioid dynamic capsule, 1 em 300-500 G4 rackmount receiver, 1 GA3 rack kit, and 1 mic clip.

Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

• Easy and flexible wireless synchronization between transmitter and receiver via infrared

• Up to 32 compatible channels

• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

• High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

EM 300-500 G4

• Frequency range

  AS: 520 - 558 MHz

  Aw+: 470 - 558 MHz

  Bw: 626 - 698 MHz

  Cw: 718 - 790 MHz

  Dw: 790 - 865 MHz

  GBw: 606 - 678 MHz

  Gw: 558 - 626 MHz

  Gw1: 558 - 608 MHz

  JB: 806 - 810 MHz

  K+: 925 - 937,5 MHz

  K+: 925 - 937,5 MHz

• Dimensions

  Approx. 202 x 212 x 43 mm

• Compander

  Sennheiser HDX

• THD, total harmonic distortion

  ≤ 0.9 %

• Weight

  Approx. 980 g

• Audio output

  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio

  ≥ 115 dBA

• Switching bandwidth

  up to 88 MHz

• Peak deviation

  ±48 kHz

• Nominal deviation

  ±24 kHz

• Modulation

  Wideband FM

• Power supply

  12 V DC

• Antenna connector

  2 BNC sockets

• Current consumption

  350 mA

• Adjacent channel rejection

  Typically ≥ 75 dB

• Intermodulation attenuation

  Typically ≥ 70 dB

• Receiving frequency

  Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

• RF sensitivity

  < 2.5 μV for 52 dBA eff S/N

• Squelch

  5 to 25 dBμV in steps of 2 dB

• Equalizer

  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range

  -10 °C to +55 °C

• Receiver Principle

  True diversity

• Blocking

  ≥ 75 dB
