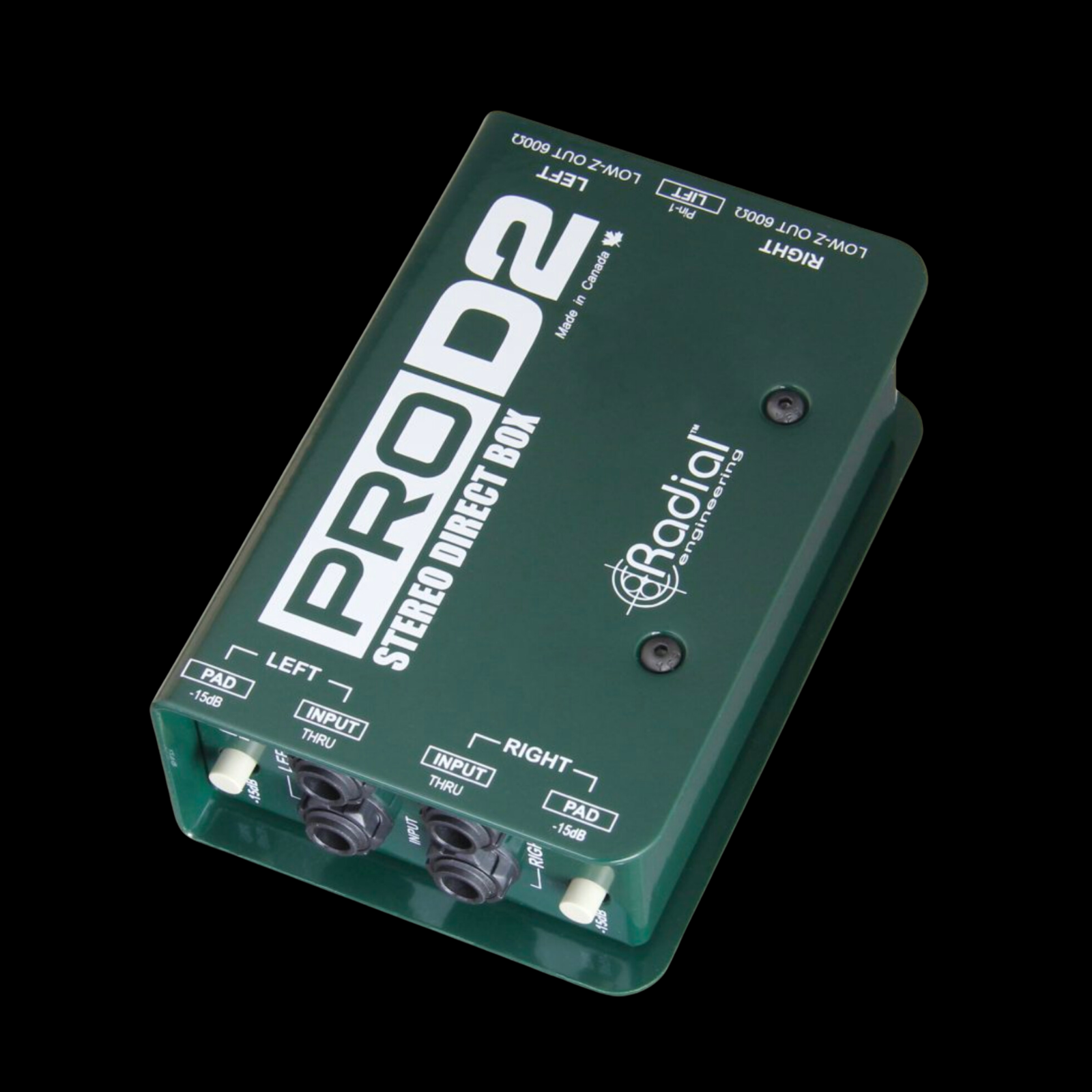

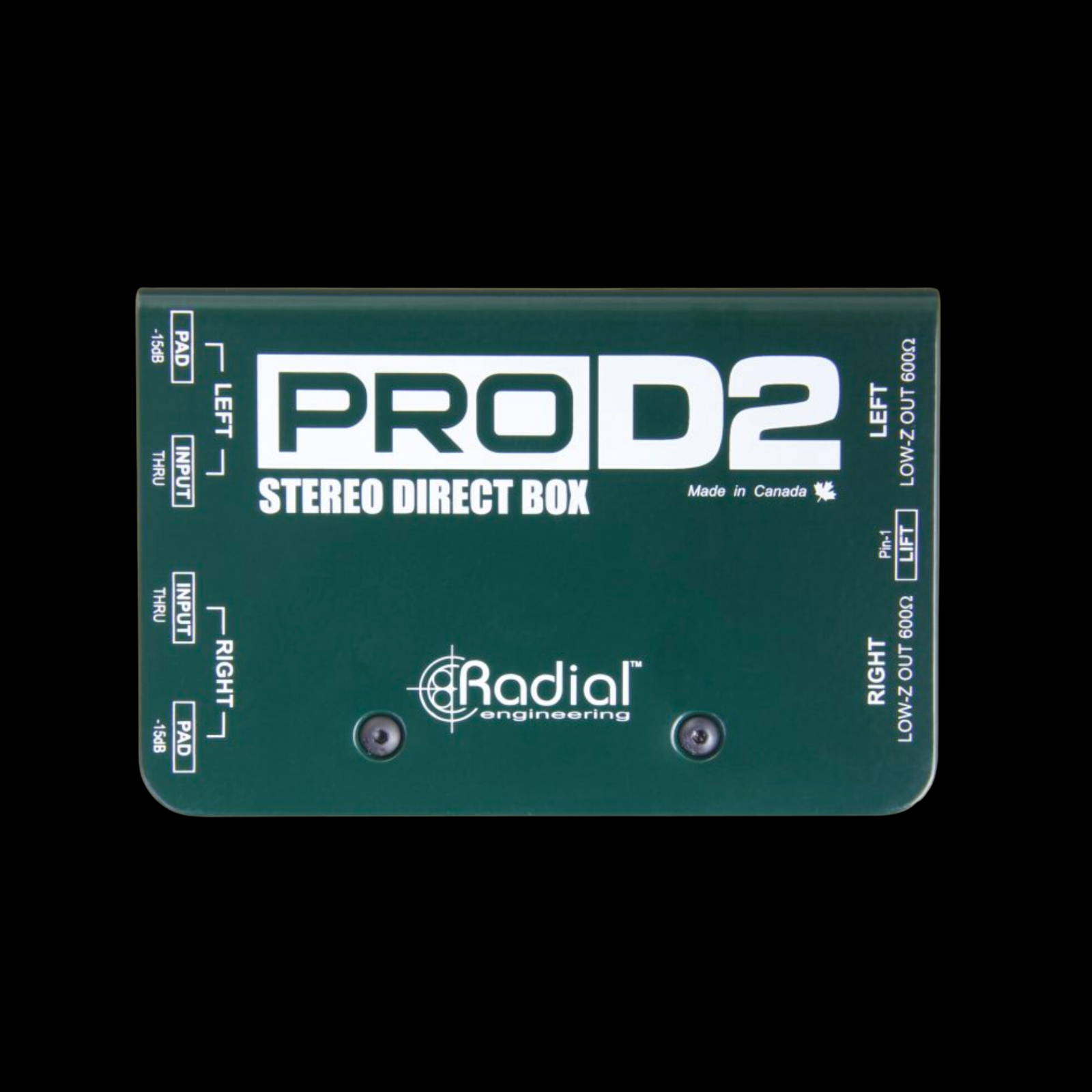

Radial ProD2 2-channel Passive Instrument Direct Box

Radial ProD2 2-channel Passive Instrument Direct Box

The ProD2 is a 2-channel passive direct box designed to connect stereo keyboards or high output instruments to a PA system or home recording setup without noise or distortion.

At the heart of the design are two high performance Eclipse ET-DB2 transformers. These deliver 20Hz to 20kHz performance with less than 1.5dB deviation above 18kHz and are able to withstand tremendous signal levels without distortion. Unlike active circuits that overload when the signal exceeds the rail voltage, transformers saturate. This creates a pleasing effect that naturally rounds out the tone, acting like a subtle limiter which is particularly advantageous when interfacing the ProD2 with digital pianos, samplers and drum machines that can produce excessive dynamics. Transformers are particularly adept at eliminating hum and buzz caused by ground loops.

Highlights

• Stereo direct box designed for keyboards

• Smooth, warm sound rounds out digital edge

• Able to handle huge transients without choking

• May be rack mounted for touring rigs

Specifications

• Type:Passive DI
• Channels:2
• Pads:-15dB
• Ground Lift:Yes

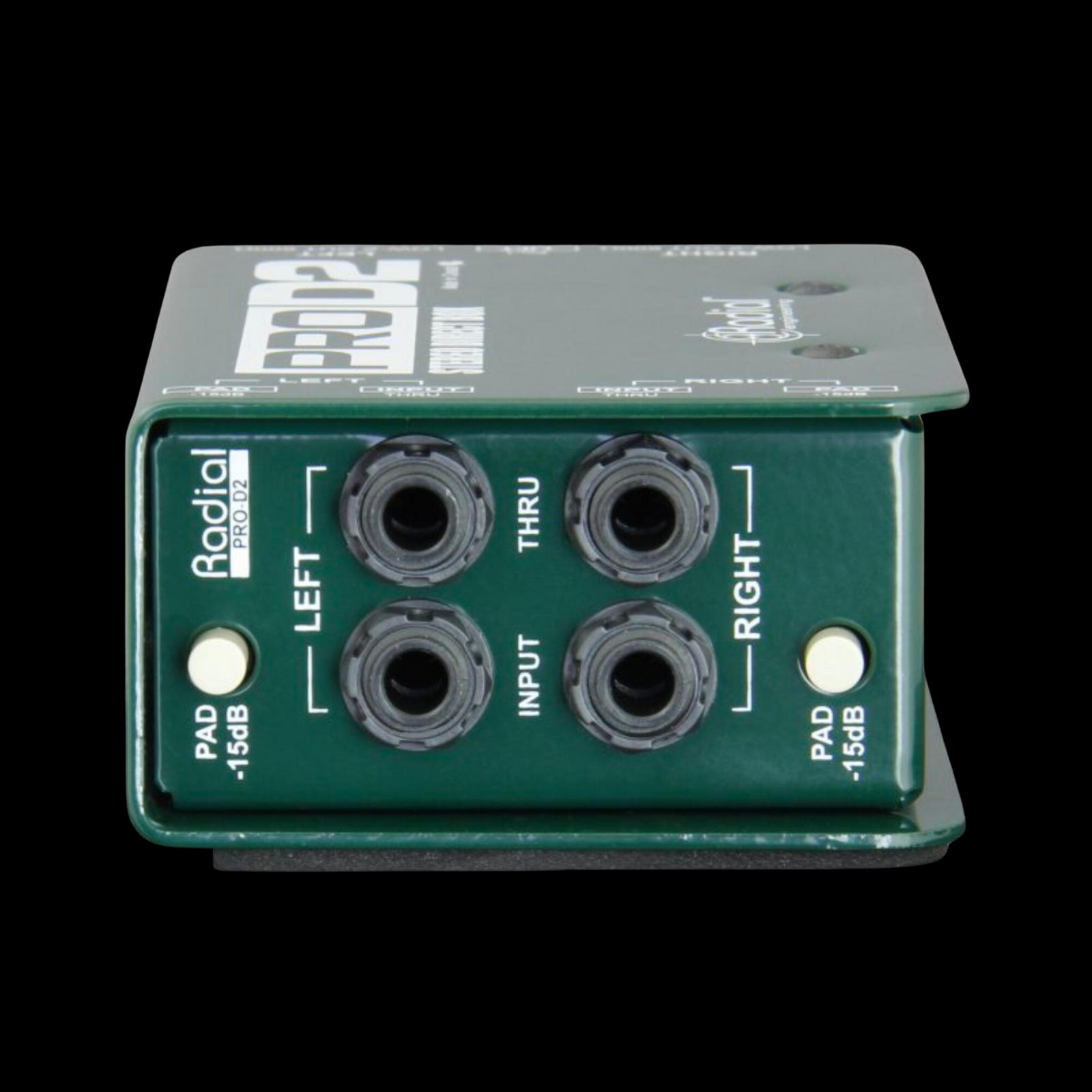

• Inputs:2 x 1/4"

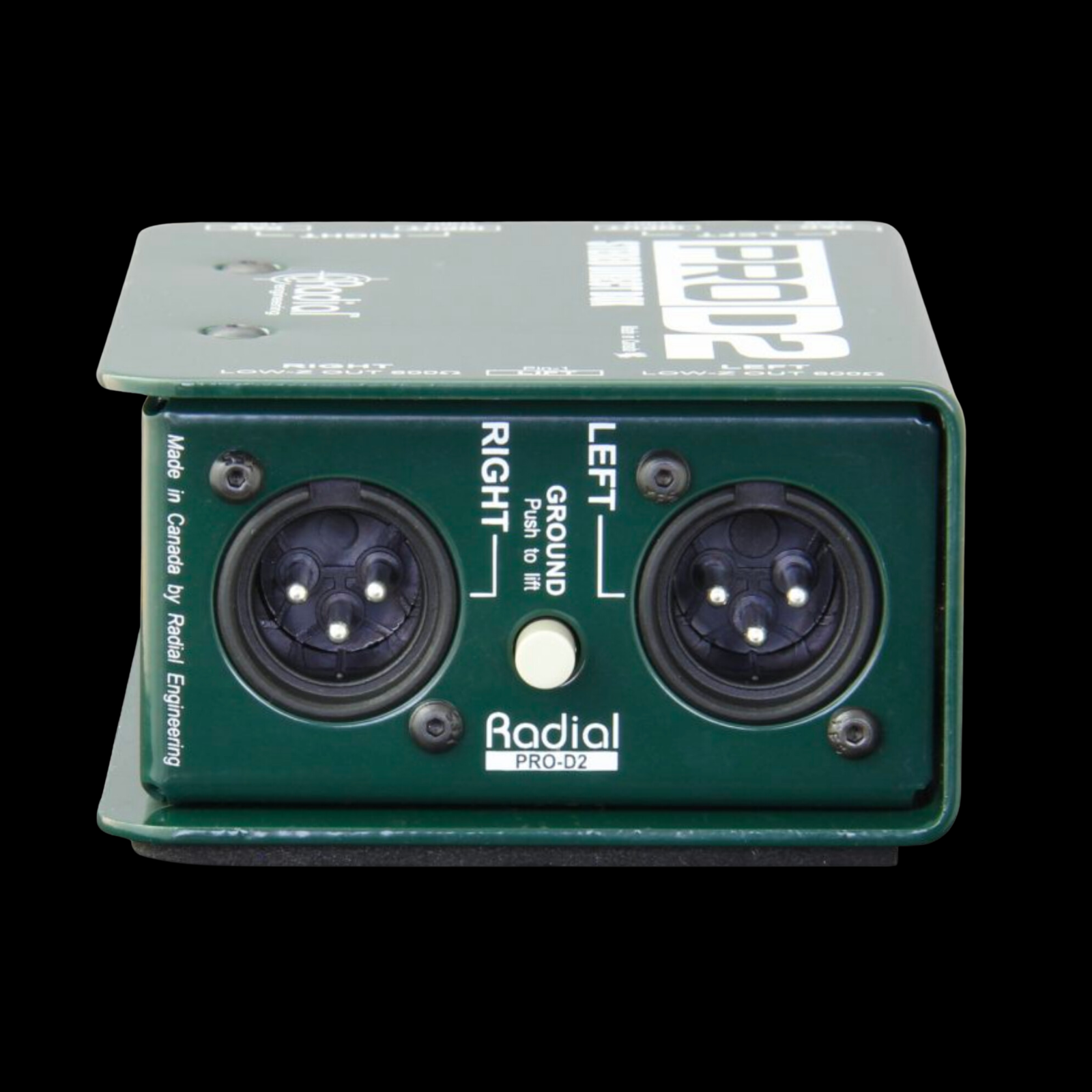

• Outputs:2 x XLR, 2 x 1/4" thru
• Height:1.88"
• Width:3.25"
• Depth:5"
• Weight:1.95 lbs.
• Manufacturer Part Number: PROD2

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
