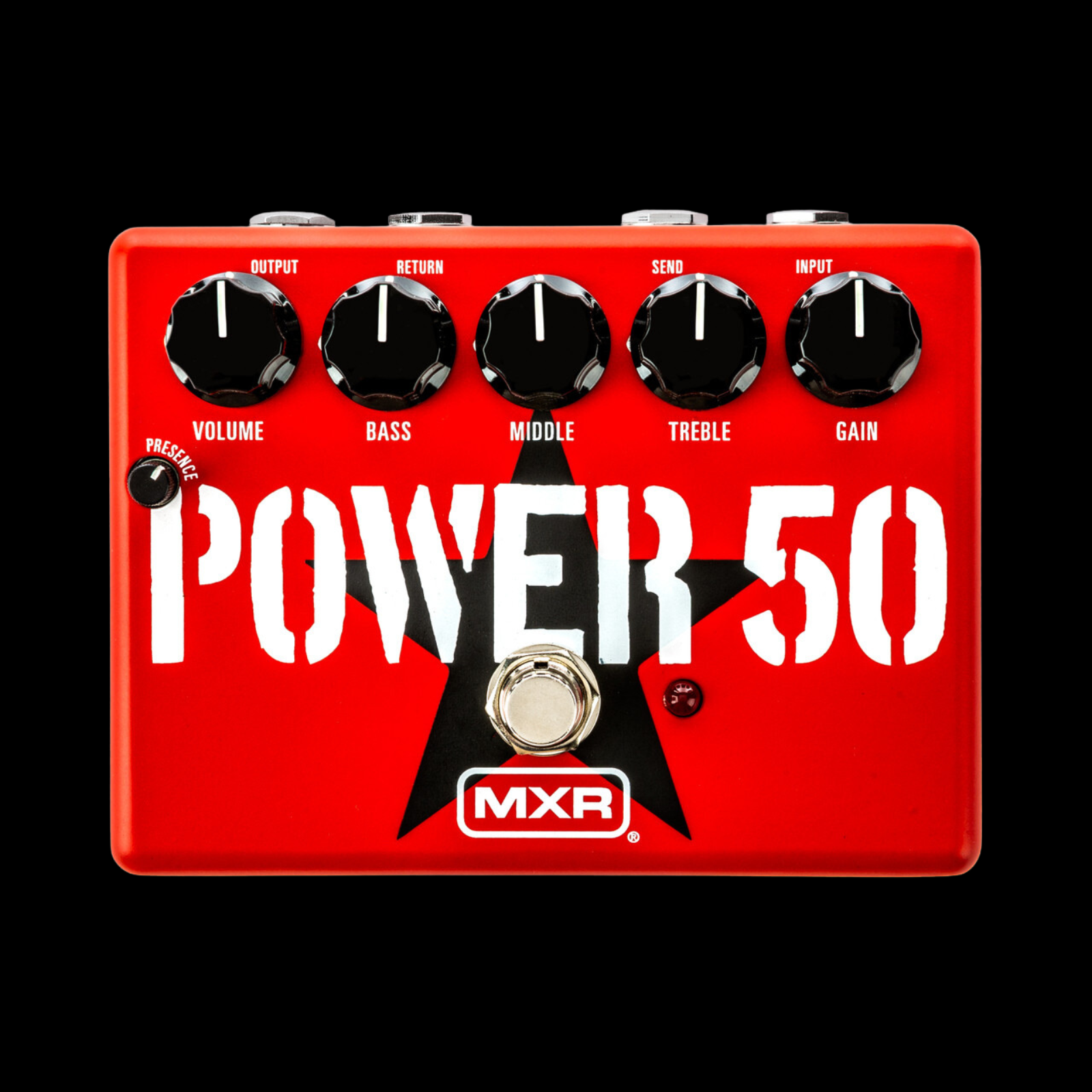

MXR Tom Morello Power 50 Overdrive Pedal

MXR Tom Morello Power 50 Overdrive Pedal

For more than 30 years, the key component of Tom Morello’s raw, hard-hitting sonic voice has been his amp setup. The MXR Power 50 Overdrive captures the sound and functionality of that setup for use with any rig, whether you have a simple combo amp or a high-end custom stack.

The circuitry of the Power 50 Overdrive uses MOSFET technology to recreate the preamp stages of Tom’s amplifier for amp-like performance that’s uncanny in its ability to reproduce those big, gnarly tones. Tom relies solely on his amplifier for his signature distortion tones, and when you step on the Power 50 Overdrive, you’ll understand why.

Highlights

• FOOTSWITCH toggles effect on/bypass (red LED indicates on)
• PRESENCE knob adjusts high-end frequencies of overall output signal
• VOLUME knob controls overall volume of pre-effects loop signal
• BASS knob cuts/boosts low frequencies of pre-effects loop signal
• RETURN jack breaks effects loop connection and receives effects loop output signal
• MIDDLE knob cuts/boosts midrange frequencies of pre-effects loop signal
• SEND jack transmits post-EQ signal to effects loop
• TREBLE knob cuts/boosts high frequencies of pre-effects loop signal
• GAIN knob sets overdrive intensity

Specifications

• Pedal Type: Overdrive
• Analog/Digital: Analog

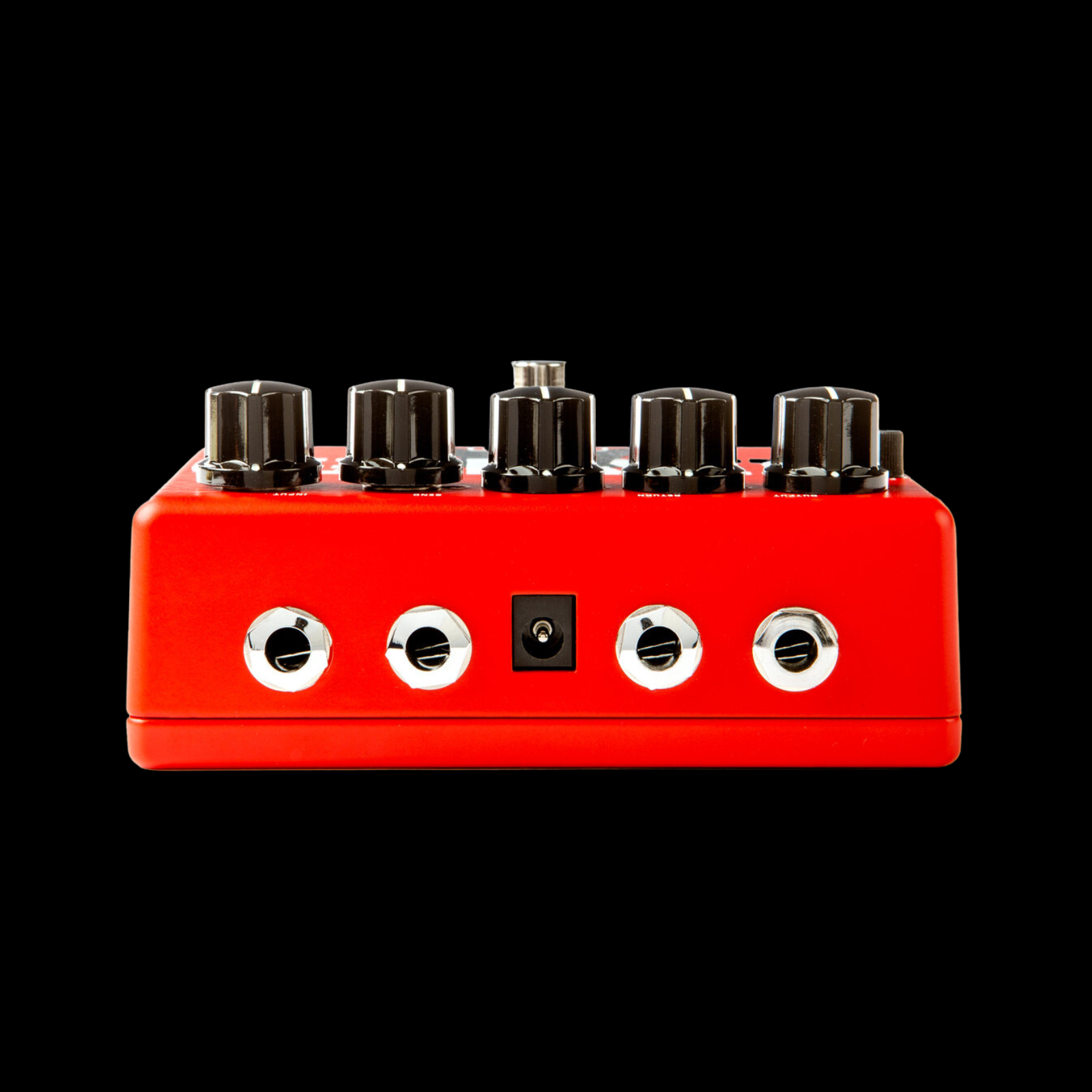

• Inputs: 1 x 1/4" (instrument), 1 x 1/4" (return)
• Outputs: 1 x 1/4" (output), 1 x 1/4" (send)
• Bypass Switching: True Hardwire
• EQ: 3-band EQ, Presence
• Power Source: 9V DC power supply (sold separately)

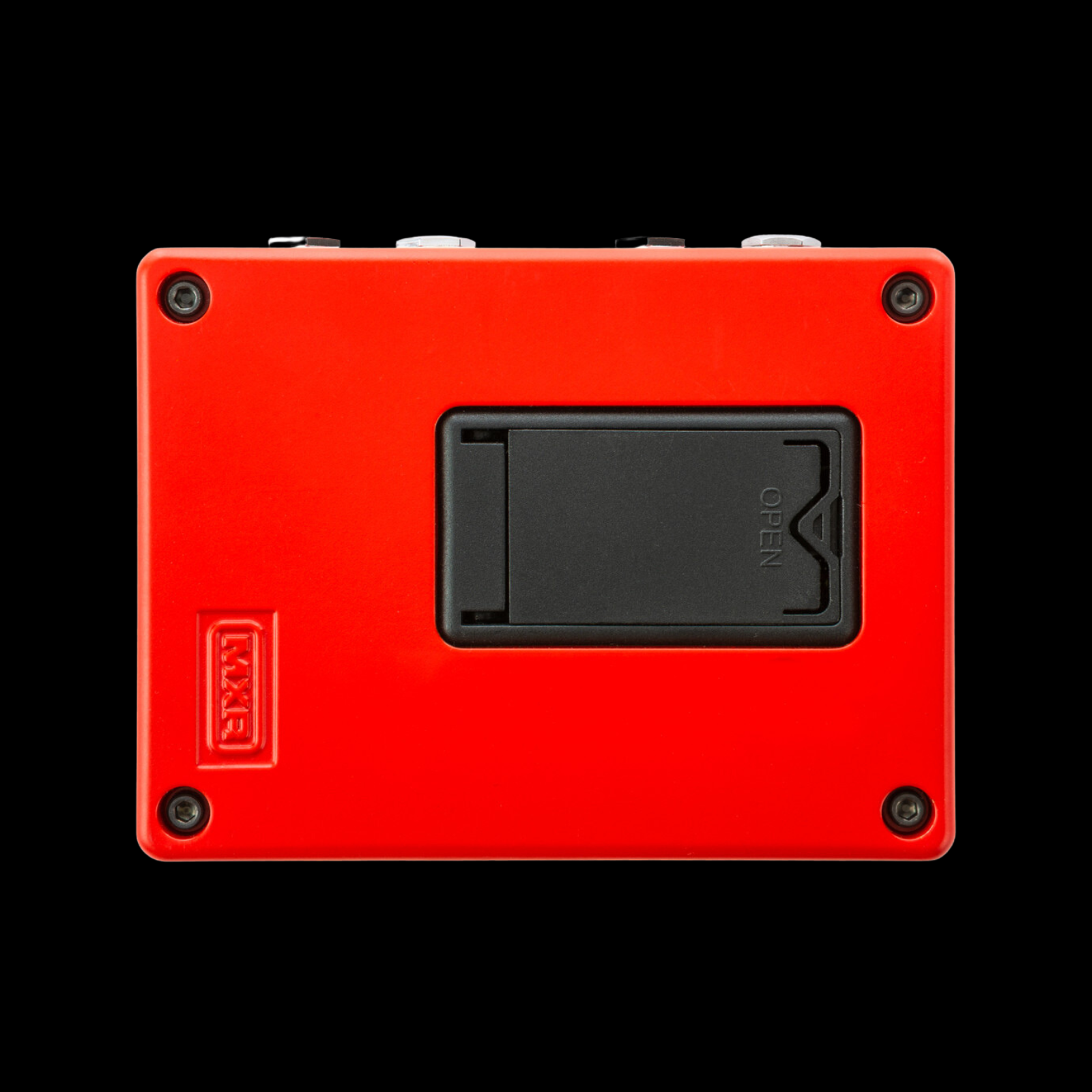

• Batteries: 1 x 9V
• Power Usage: 12mA
• Height: 2.37"
• Width: 5"
• Depth: 3.62"
• Weight: 0.94 lbs.
• Manufacturer Part Number: TBM1
