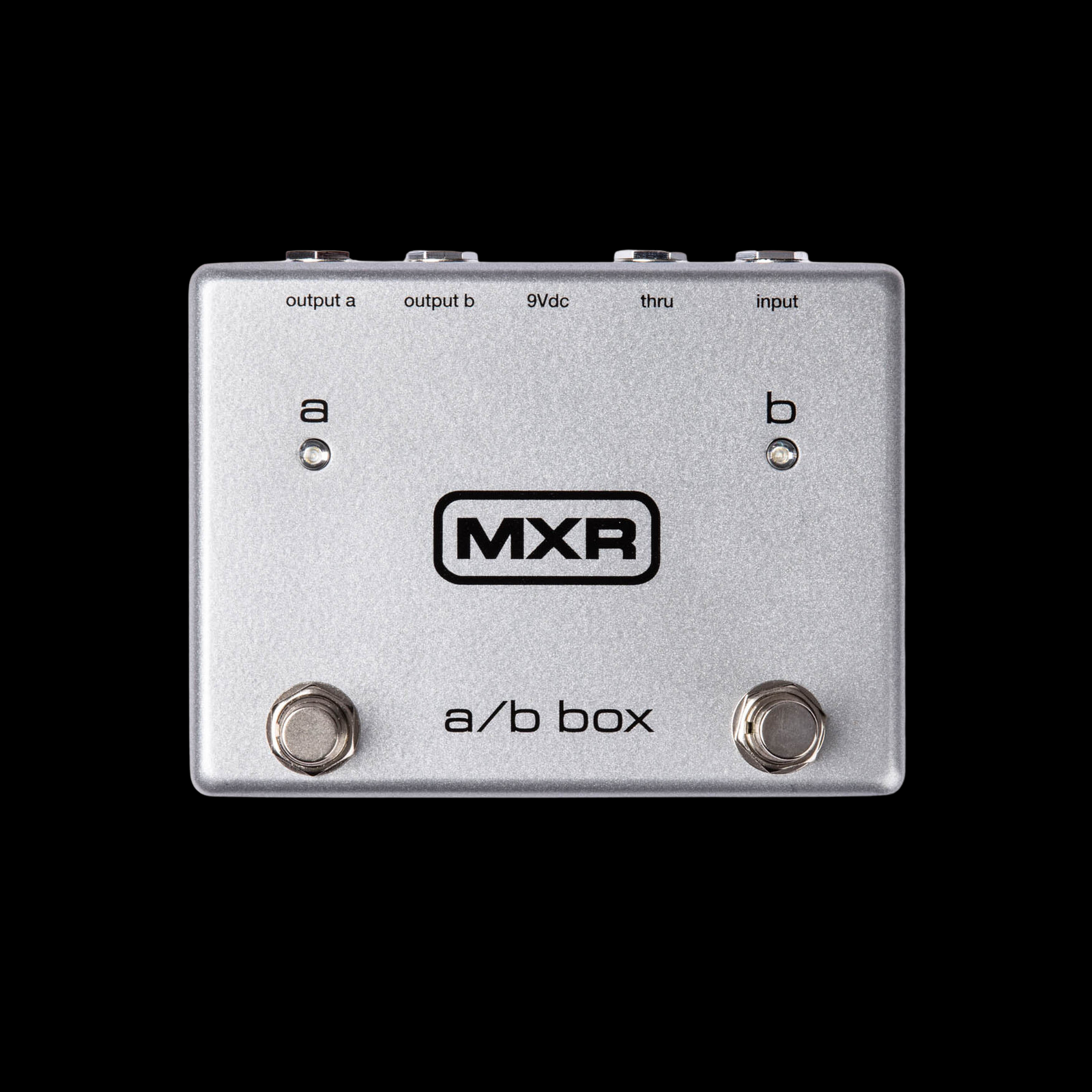

MXR M196 A/B Box Signal Switcher Pedal

MXR M196 A/B Box Signal Switcher Pedal

The A/B Box allows you to route your instrument's signal to two separate output amp paths. Use it to switch between amps or run them both at the same time with different effect configurations so you can find your ultimate sound. Use the Thru jack to connect to a tuner, amp or other device that you want to receive a constant signal. The A/B Box comes in a heavy-duty die-cast housing with high quality jacks and switches.

Highlights

• Routes instrument signal to two separate output paths
• Select between two separate signal paths or run both at the same time
• Thru jack allows you to connect to a tuner or amp that receives a constant signal from your guitar, unaffected by the A/B switches
• Output jacks are terminated to ground in bypass
• All switching is true hardwire

Specifications

• Type: I/O Selector
• Inputs: 1 x 1/4"
• Outputs: 3 x 1/4"
• Power Source: 9V DC power supply (sold separately)
• Height: 1.5"
• Width: 5"
• Depth: 3.75"
• Manufacturer Part Number: M196
