Maker Hart Loop Mixer

Maker Hart Loop Mixer

The Loop Mixer has a total of 5 sets of stereo inputs and can connect up to 10 sets of input devices simultaneously. It has a magnification function and can also be used as a microphone. You can freely adjust whose voice you want to listen to or whom you don't want to hear in your own Loop Mixer without affecting the overall mixing output. It is easy to achieve multi-person training and supports series connections of multiple groups of audio sources.

Highlights

• Stereo 5 in/2 out Configuration: 5 stereo devices on LOOP MIXER can connect up to 10 mono device.
• Microphone Setup: With the inclusion of SENS(Sensitivity) knobs, the LOOP MIXER can accommodate a variety of signals from microphone to Line level.
• Overload Indicators : The L/R OVERLOAD LEDs allow you to set the best signal level for optimum audio performance.
• REC OUT Jacks: Connection to a recording device can be made through these jacks.
• PHONES Jack: Stereo headphones can be connected to this jack for convenient mix monitoring.

Specifications

• Fixed Level Input Signal: INPUT Input (1 to 5 tracks) 50dBm ~ +4dBm
• Input Impedance: 20 kΩ (Stereo) / 10 kΩ (Mono)
• Fixed Level Output Signal: OUTPUT Main Output 0dBm / REC OUT Recording Output -10dBm
• Output Impedance: OUTPUT Main Output 1kΩ / REC OUT Recording Output 1kΩ
• Headphone Output: 0.1mW (33Ω load)
• Total Harmonic Distortion: 0.05% or less
• Current Consumption: 65mA (maximum)
• Dimensions: 175 x 130 x 30 mm / 6.9" x 5.1" x 1.2"
• Weight: 295g / 10.4 oz (main unit)

Condition: Excellent. Light wear typical of a gently used Item. Light surface scratches, scuffs, etc.

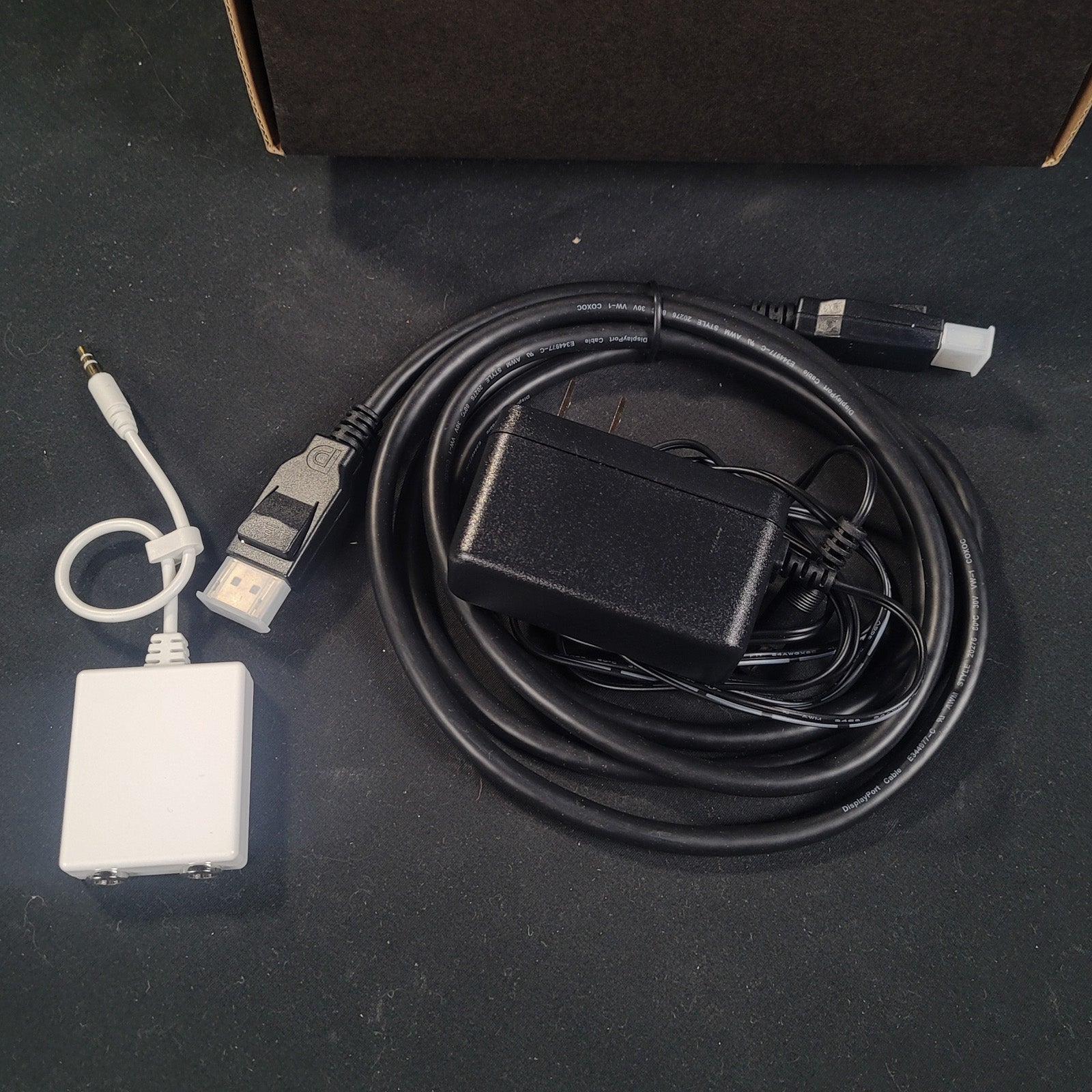

This item comes with everything pictured.
Please feel free to reach out to our knowledgeable sales staff with any additional questions!
