EarthQuaker Devices Passive A/B/Y Box

EarthQuaker Devices Passive A/B/Y Box

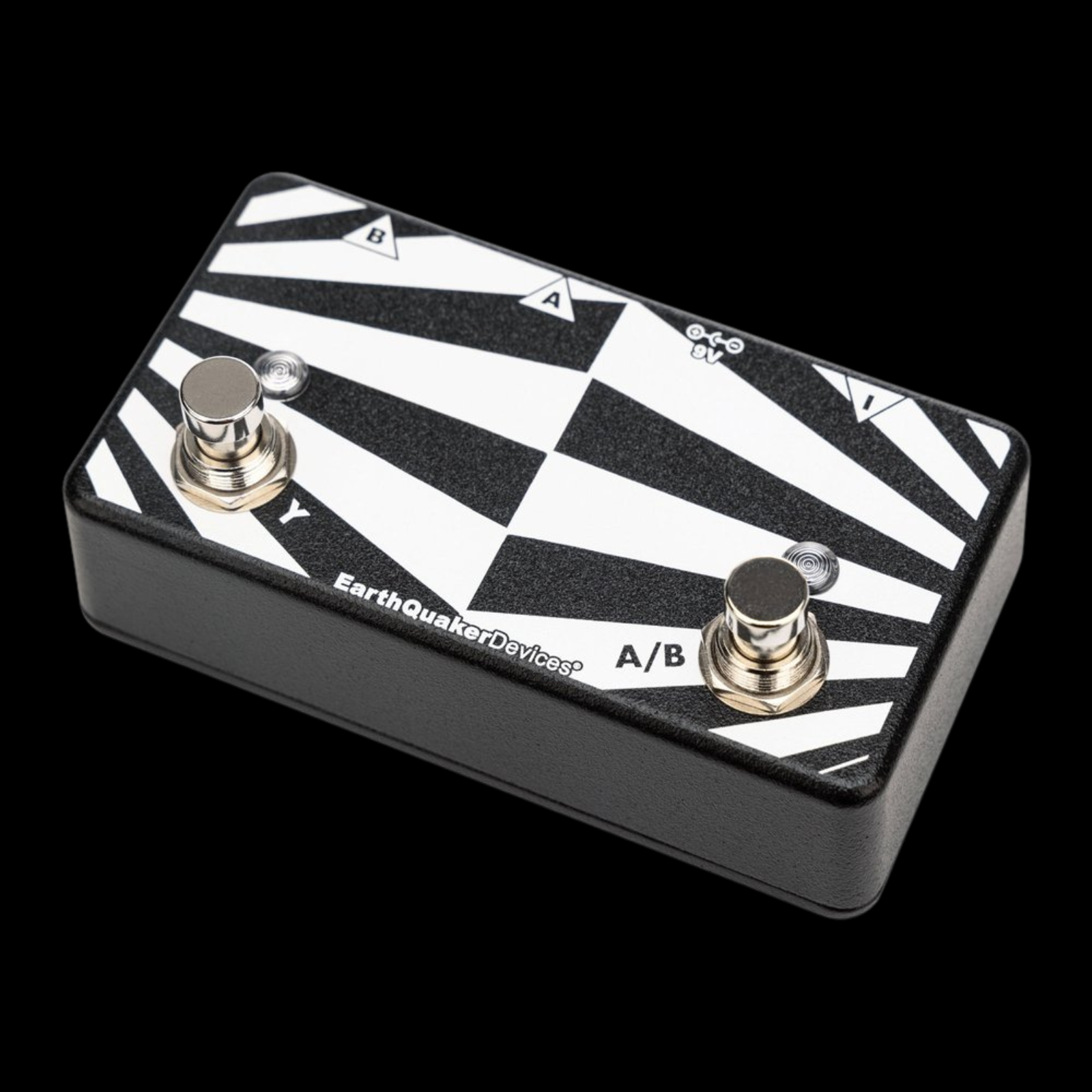

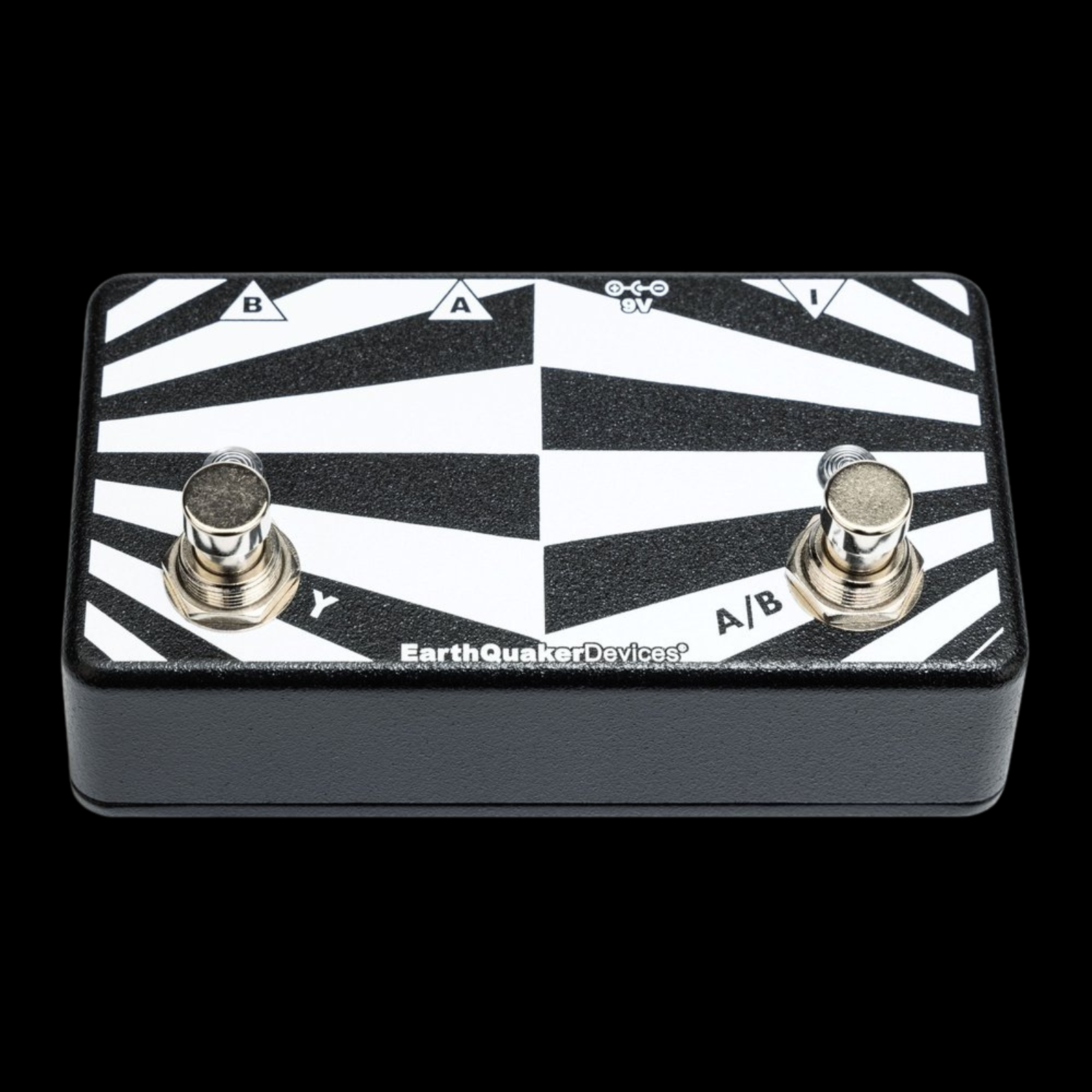

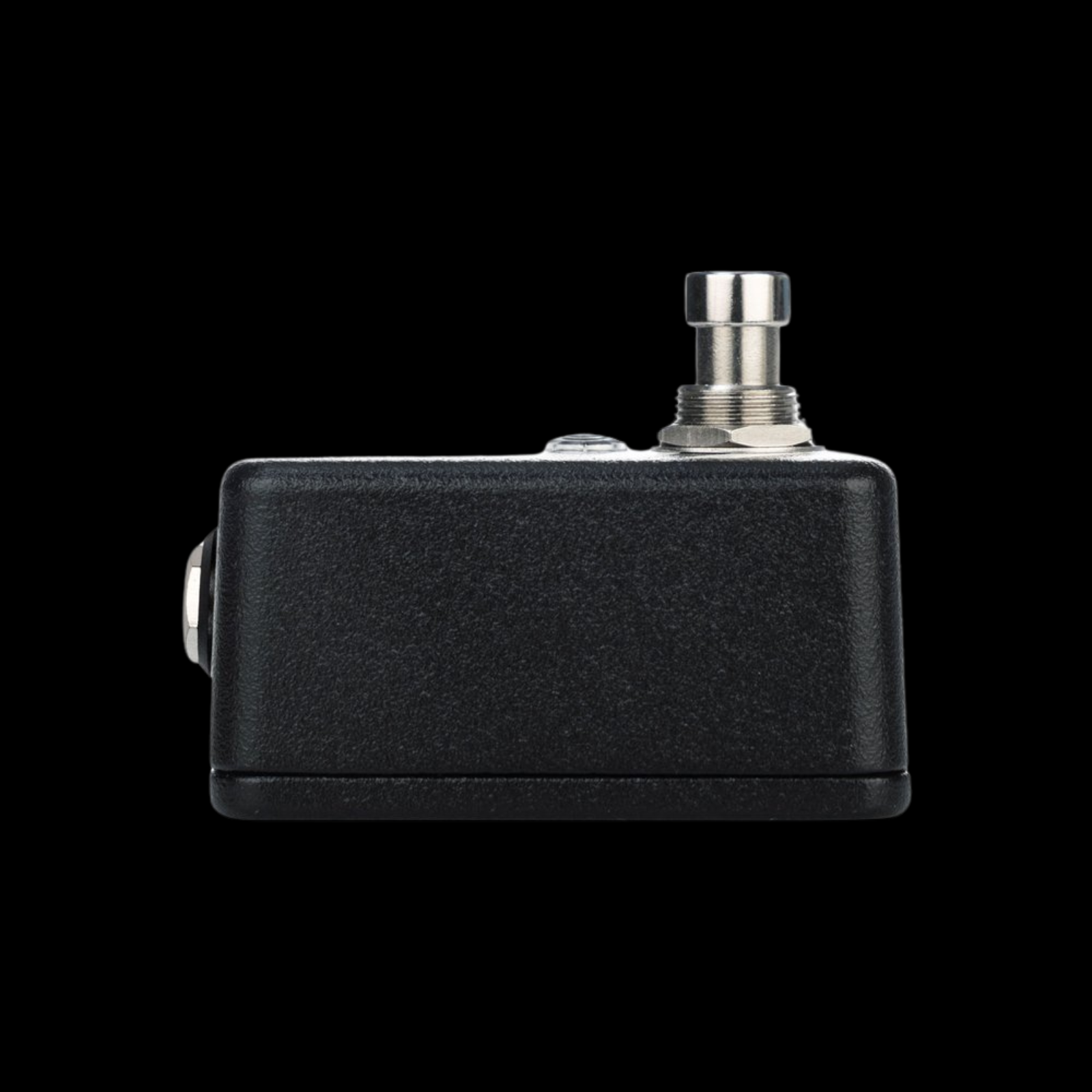

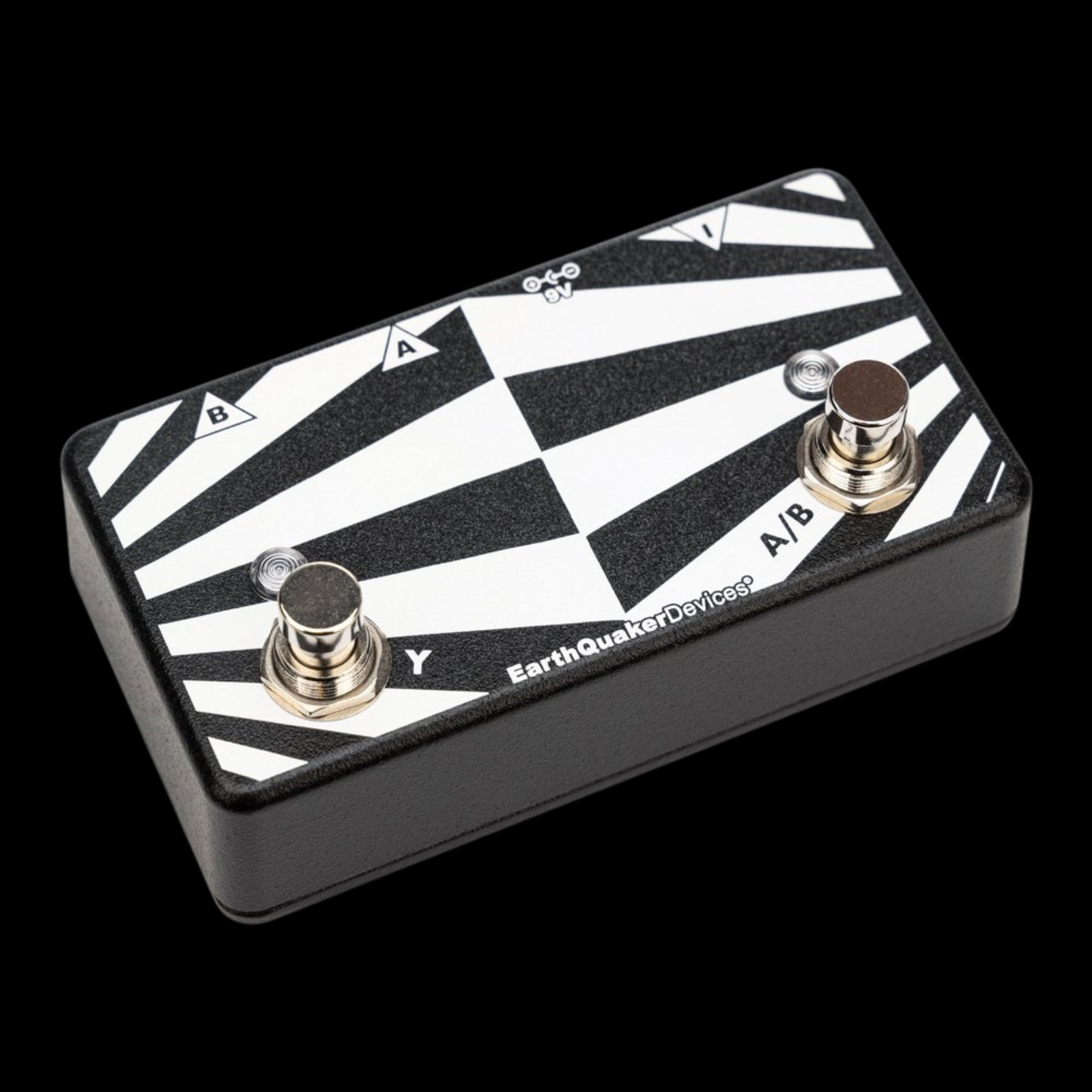

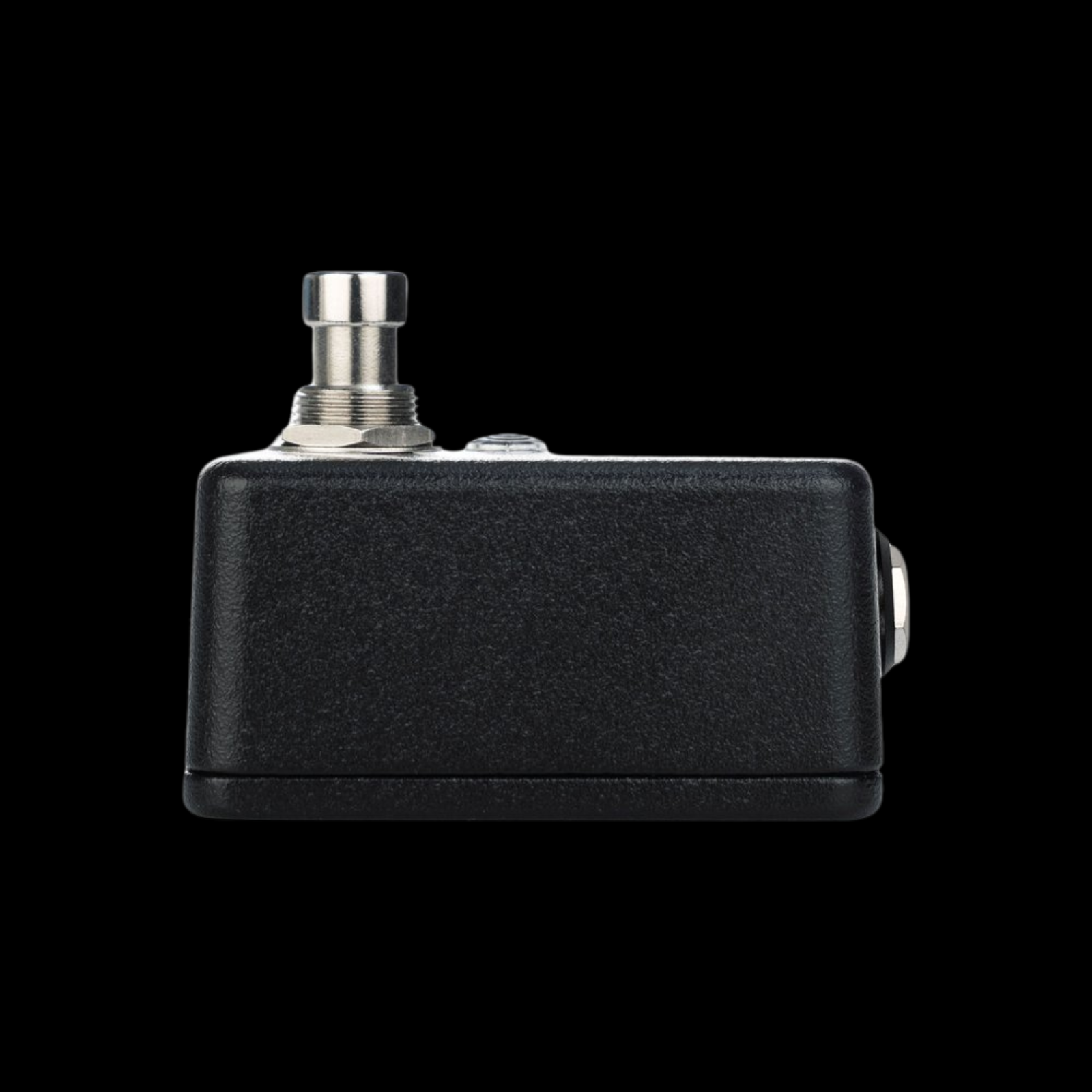

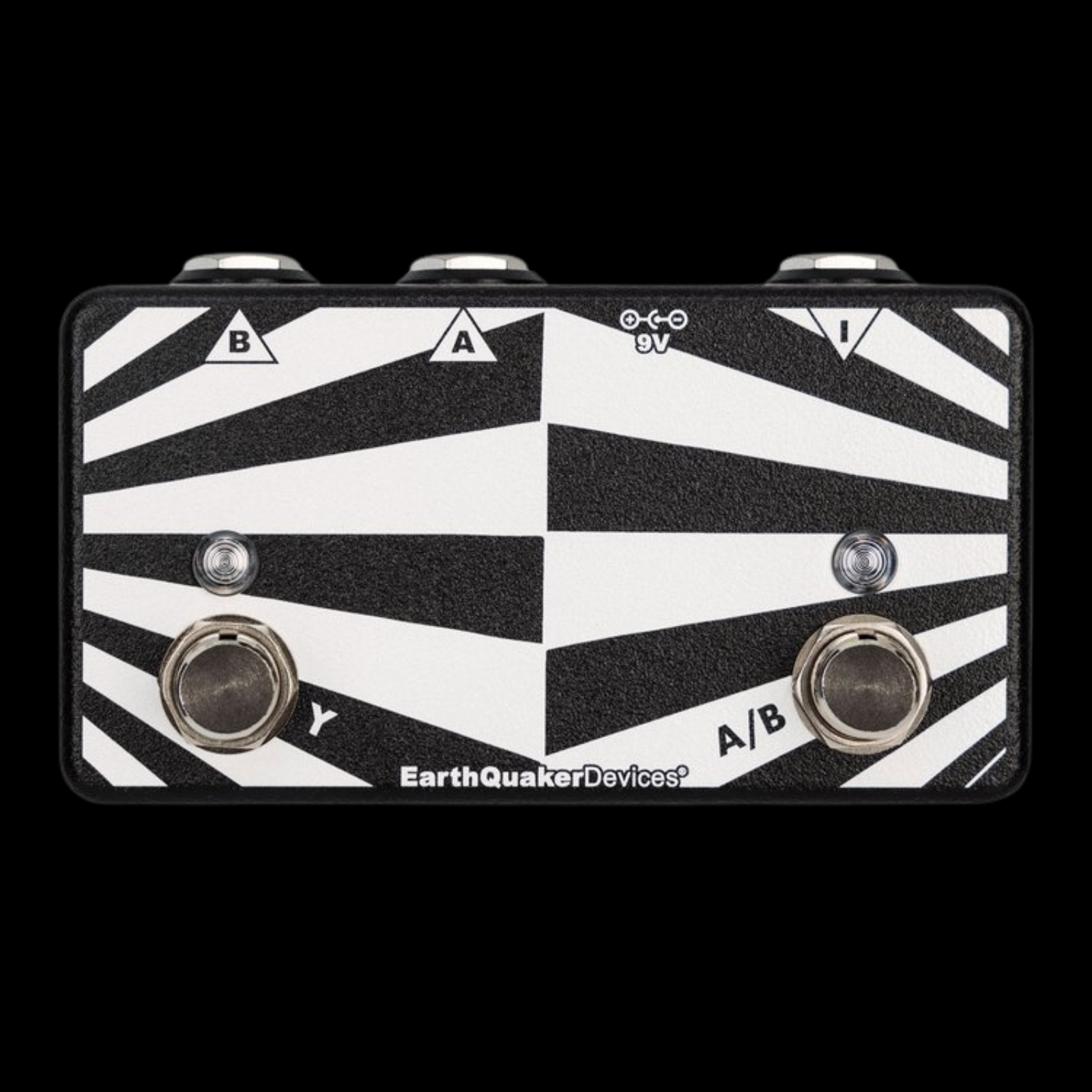

The EarthQuaker Devices® Passive ABY Box is the perfect solution if you can’t decide when and where you would like your signal to go. In its most basic form, this passive little box is commonly used to run a single input out to two destinations and lets you choose between using either individually or both at the same time. The most common problem an ABY is used to solve is one input being sent out to two amplifiers, but it doesn’t have to stop there! Because of its completely passive circuitry it can also be used in reverse to choose between two inputs to a single output. Use it to simultaneously run two different instruments to one input! An oboe and a bass, a keyboard and a harmonica, a lute and a modular synth… you know, whatever! This compact little device has a small footprint and won’t take up much real estate on your board and is built using high quality parts that will withstand years of use and keep going.

Specifications

• Type: ABY Box

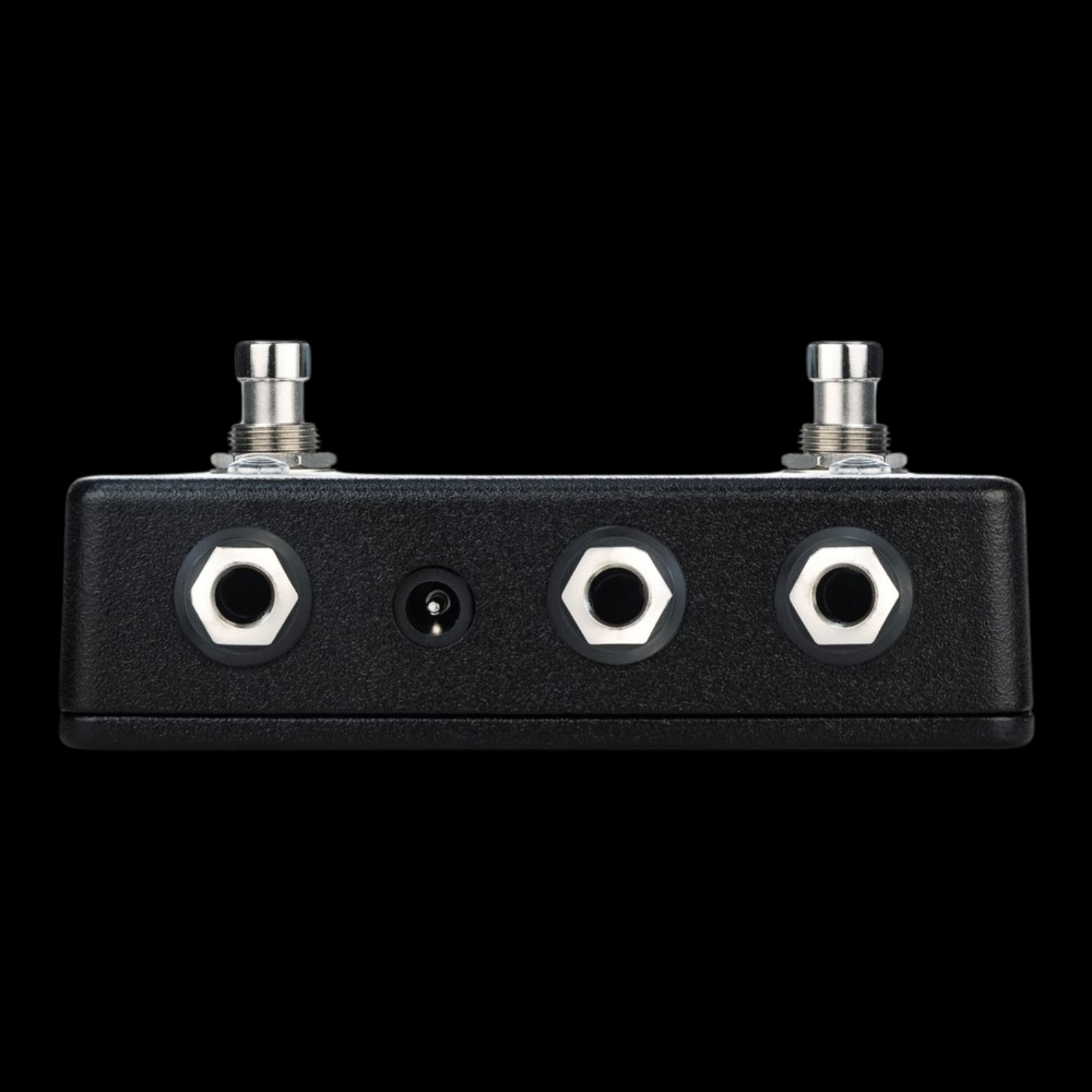

• Inputs: 1 x 1/4"

• Outputs: 2 x 1/4" (A, B)

• Power Source: Passive, 9V DC power supply (sold separately)

• Height: 1.87"

• Width: 4.43"

• Depth: 2.87"

• Weight: 0.68 lbs.

• Manufacturer Part Number: EQDABYBV1USA

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
