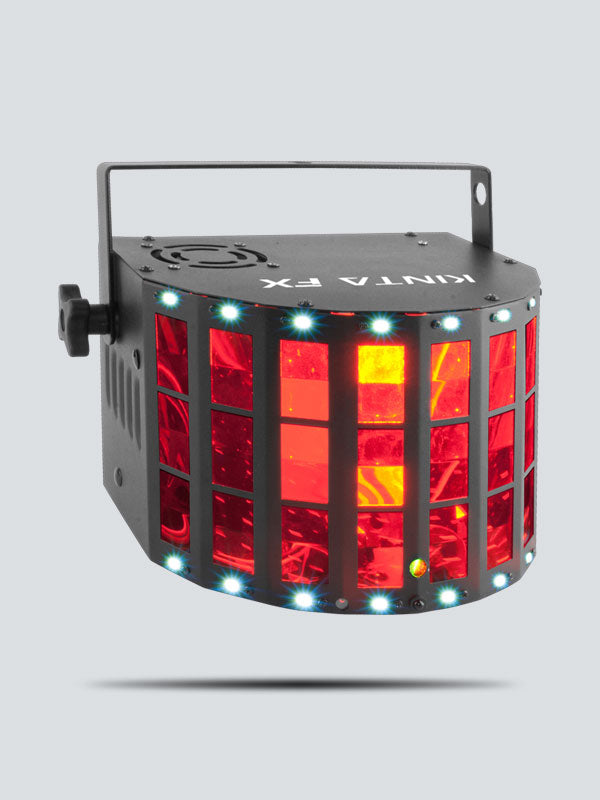

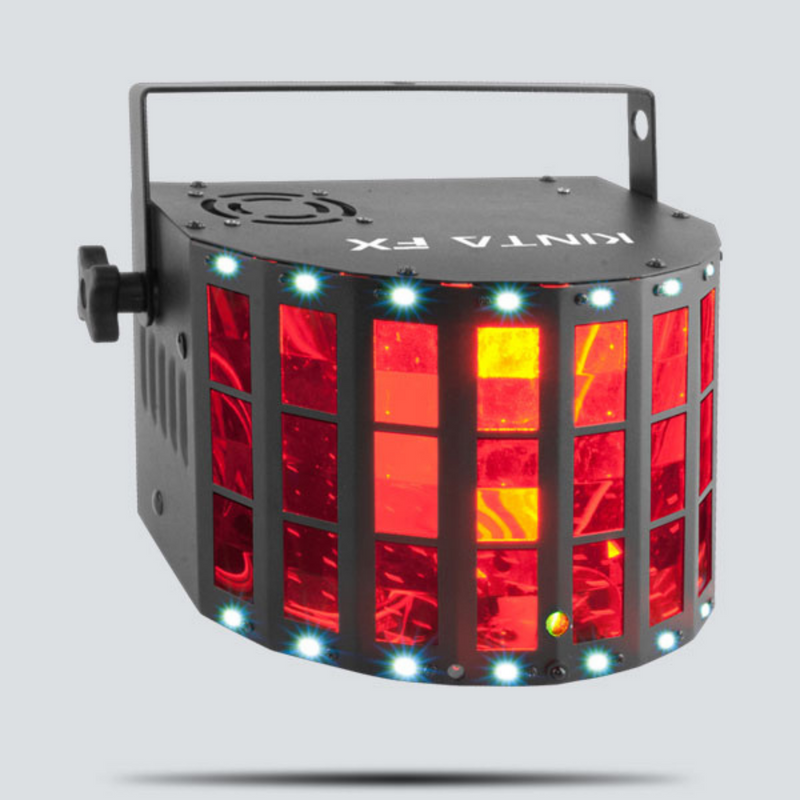

Kinta FX combines an LED derby effect, laser and SMD strobe in one compact fixture. These effects can be coordinated to create a variety of exciting looks that feature multicolored derby beams, dynamic strobes and chases plus hundreds of sharp red and green laser beams. Control this versatile fixture easily via DMX, master/slave, optional IRC-6 remote or its digital display. Multiple units can be power linked to save time running cables and extension cords. Fits best in the CHS-30 VIP Gear Bag.
- Compact multi-effect with a Kinta, Laser and SMD Strobe
- LED Kinta effect projects countless razor sharp multicolor beams
- SMD strobes produce eye-catching strobe effects and chases
- A red and green laser that casts hundreds of beams
- Master/Slave with other Mini Kinta FXs for a coordinated show
- Easily control the unit from DMX, Master/Slave, IRC-6 or the digital display
- Save time running cables and extension cords by power linking multiple units
-
DMX Channels: 2 or 9
-
DMX Connectors: 3-pin XLR
-
Light Source: (Kinta): 4 LEDs ( 1 Red, 1 Green, 1 Blue, 1 White) 7.5 W (2.4 A), 50,000 hours life expectancy
(Strobe): 16 SMD LEDs (white) 5 W (1.6 A) 50,000 hours life expectancy
(Laser): 650 nm/100 mW (Red) laser diode, 520 nm/30 mW (Green) laser diode
-
Strobe Rate: 0 to 20 Hz
-
Coverage Angle: 118°
-
Power Linking: 17 units @ 120 V; 33 units @ 230 V
-
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current: 25 W, 0.5 A @ 120 V, 60 Hz
24 W, 0.2 A @ 230 V, 50 Hz
-
Weight: 3.8 lb (1.7 kg)
-
Size: 7.4 x 10.3 x 7.4 in (187 x 261 x 187 mm)
-
Approvals: CE, FDA, RoHS, UKCA
-
Optional Controllers: IRC-6
- Classified per EN/IEC 60825-1:2014
- Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
WHAT'S INCLUDED
- Power cord
- Warranty card
- User Manual
Please feel free to reach out to our knowledgeable sales staff with any additional questions!
