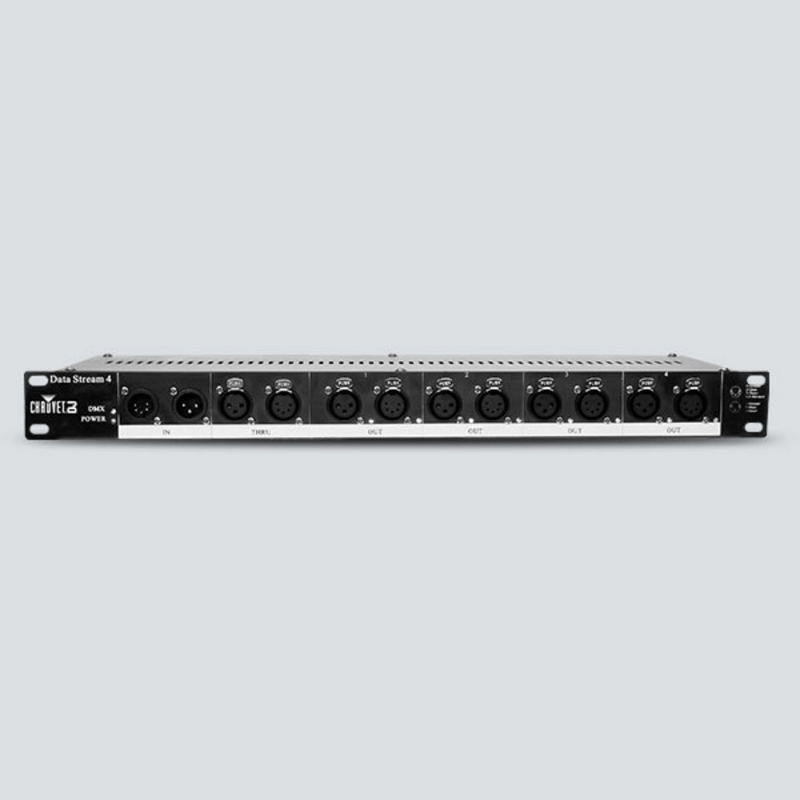

Chauvet DJ Data Stream 4 - 4-Port DMX Splitter

The Data Stream 4 is a universal DMX-512 optical splitter designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional “thru” port.

Universal, optical DMX splitter provides 4 outputs from a single input
Increase flexibility with 3- and 5-pin XLR connections for each input/output
Increase operation with additional 3- and 5-pin output for linking other Data Stream 4 units
Electrical isolation between input and output
Conveniently mount with a shorter cable run using the single space (1U) mounting rack

DMX Channels: 3- and 5-pin
Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
Power and Current: 3W, 0.1A @ 120V 60Hz
5W, 0.1A @ 230V 50Hz
Weight: 5.8 lb (2.6 kg)
Size: 19 x 5.3 x 1.8 in (483 x 134 x 46 mm)
Approvals: CE
