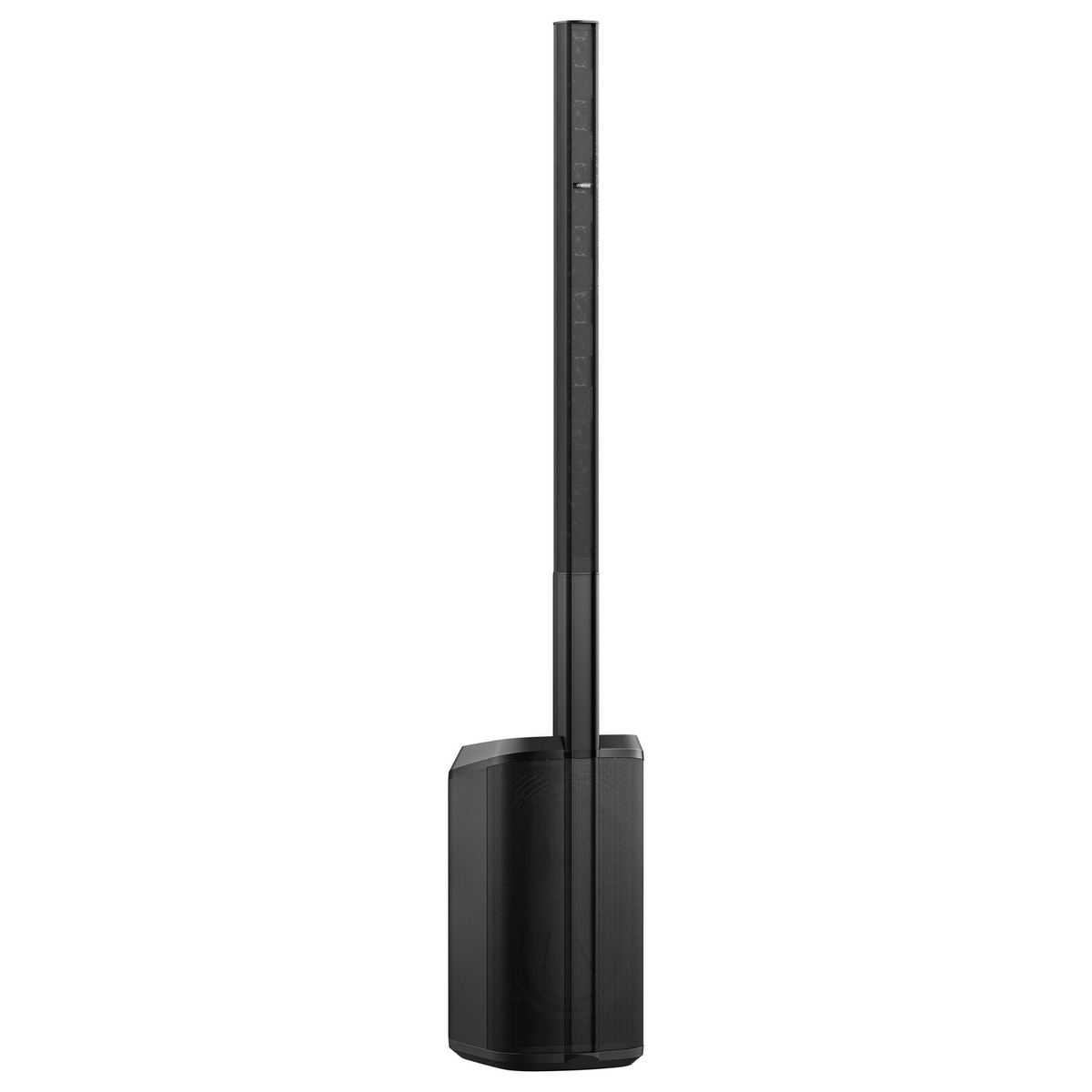

Bose L1 Pro16 Portable Line Array System

Bose L1 Pro16 Portable Line Array System

Name: Bose L1 Pro16 Portable Line Array System
Brand: Bose
SKU: L1PRO16
Price: 2199.00 USD
Availability: InStock

SKU: L1PRO16

$2,199.00

Financing options available:

In stock

Local pickup available

Bose L1 Pro16 Portable Line Array System

Springfield, MO

Pickup available, Usually ready in 24 hours

1560 East Raynell Place
Springfield MO 65804
United States

Questions? Ask Our Gear Expert

Real musicians. Real answers. No nonsense. Let’s get your rig dialed in!

(417) 882-7006 • Schedule a chat

Description

Bose L1 Pro16 Portable Line Array System

Step up your live sound setup with the Bose L1 Pro16, a portable line array designed to deliver the ideal balance of high-volume performance and effortless transport. Perfect for singer-songwriters, solo performers, mobile DJs, and small ensembles playing in medium-sized venues, bars, and clubs, the L1 Pro16 delivers incredible clarity and dynamic punch. Featuring a 16-driver articulated J-shape array, this system achieves smooth, ultra-wide 180-degree horizontal coverage. The custom 10" x 18" RaceTrack neodymium woofer gives you the low-end performance of a traditional 15" subwoofer without the bulky footprint. Complete with an onboard 3-channel mixer, dedicated ToneMatch connectivity, wireless Bluetooth® streaming, and full remote adjustment via the L1 Mix app, Palen Music Center is proud to offer the ultimate all-in-one PA solution for gigging musicians.

Please feel free to reach out to our knowledgeable sales staff with any additional questions!

Specs

Type: Portable Line Array PA System with Subwoofer

Speaker Drivers: 16 x 2" Neodymium Mid-High Drivers

Subwoofer Driver: 1 x 10" x 18" High-Excursion Neodymium RaceTrack Woofer

Coverage Pattern: 180° Horizontal x 30° Vertical (J-Shape Array)

Amplifier Class: Class-D

Total Power: 1250W (250W Mid-High Array + 1000W Subwoofer)

Max SPL: 118 dB (Peak), 112 dB (Continuous)

Frequency Response: 42 Hz – 16 kHz (+/- 3dB)

Frequency Range: 40 Hz – 20 kHz (-10dB)

Inputs: 2 x XLR-1/4" Combo (Phantom Powered), 1 x 1/4" Aux, 1 x 1/8" (3.5 mm) Aux

Outputs: 1 x XLR Balanced Line Out

Digital Inputs: Dedicated ToneMatch Port (for Bose T4S/T8S mixers)

Wireless Protocols: Bluetooth® Audio Streaming

Software Control: L1 Mix App (iOS/Android)

Dimensions (H x W x D): 79.2" x 14.0" x 18.0" (201.2 x 35.5 x 45.6 cm)

Weight: 54.8 lbs (24.8 kg)

Videos

Highlights

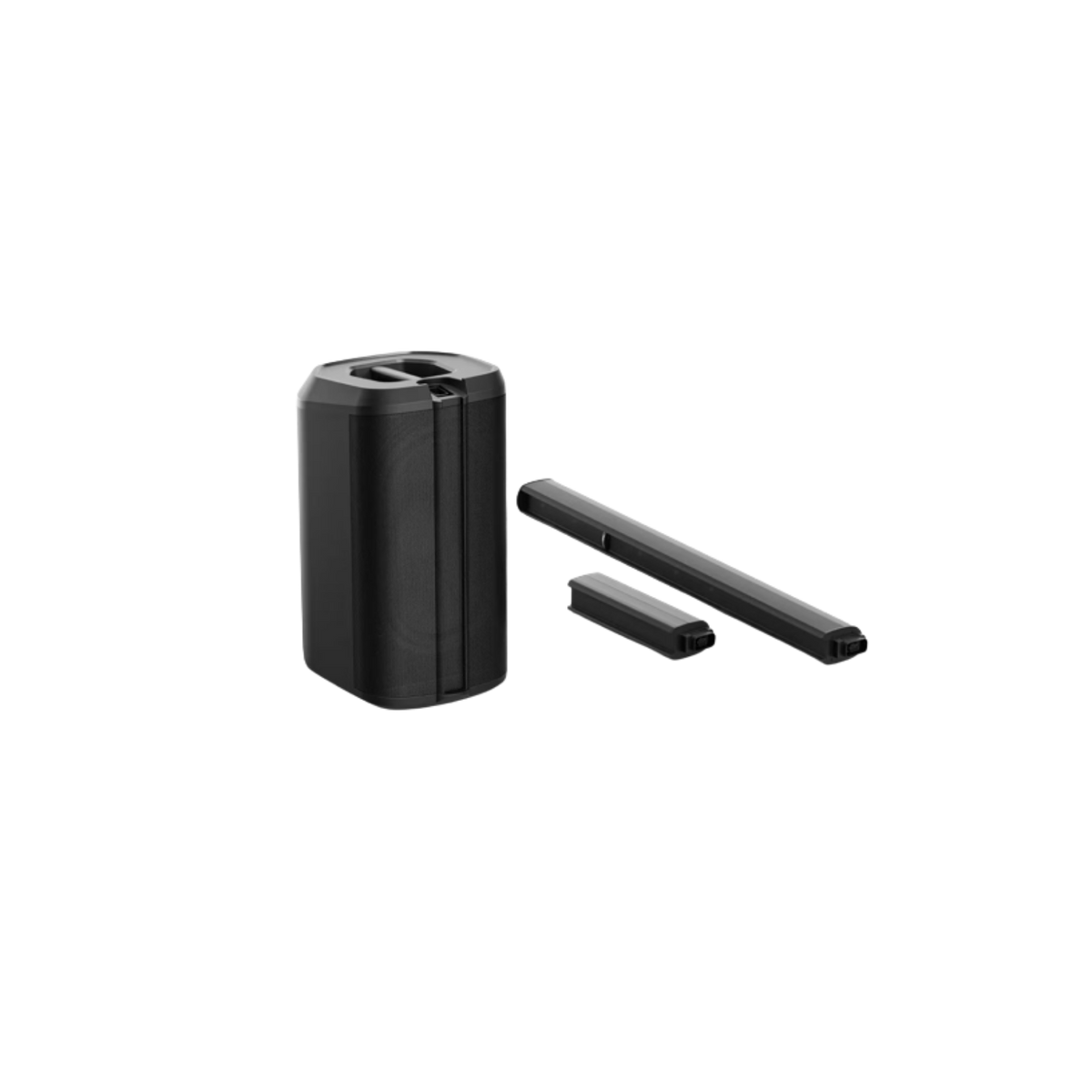

Ideal Balance of Output and Mobility: Modular 3-piece layout makes transport, loading, and venue setup effortless.

Ultra-Wide 180-Degree Coverage: J-shaped array housing 16 articulated 2" drivers ensures precise sound distribution throughout the entire space.

Punchy Bass, Slim Profile: Integrated 10" x 18" RaceTrack driver matches traditional 15" subwoofers in output with a space-saving design.

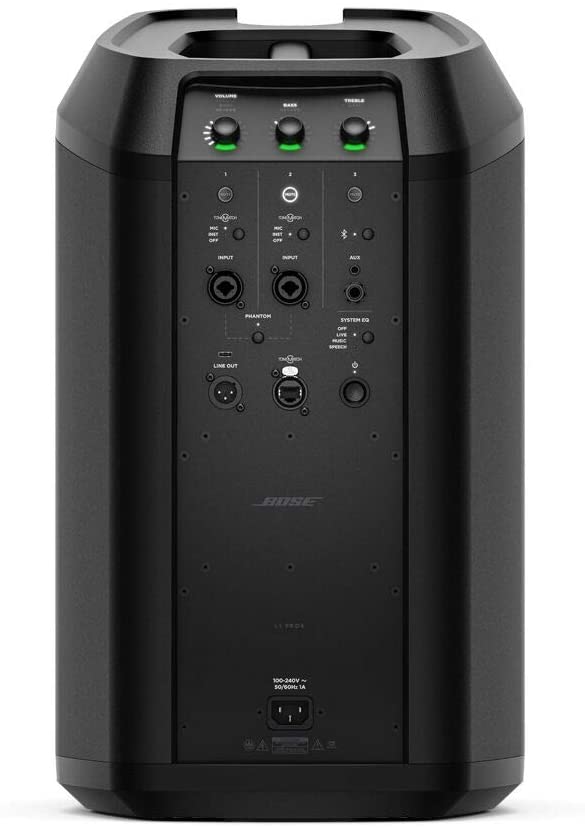

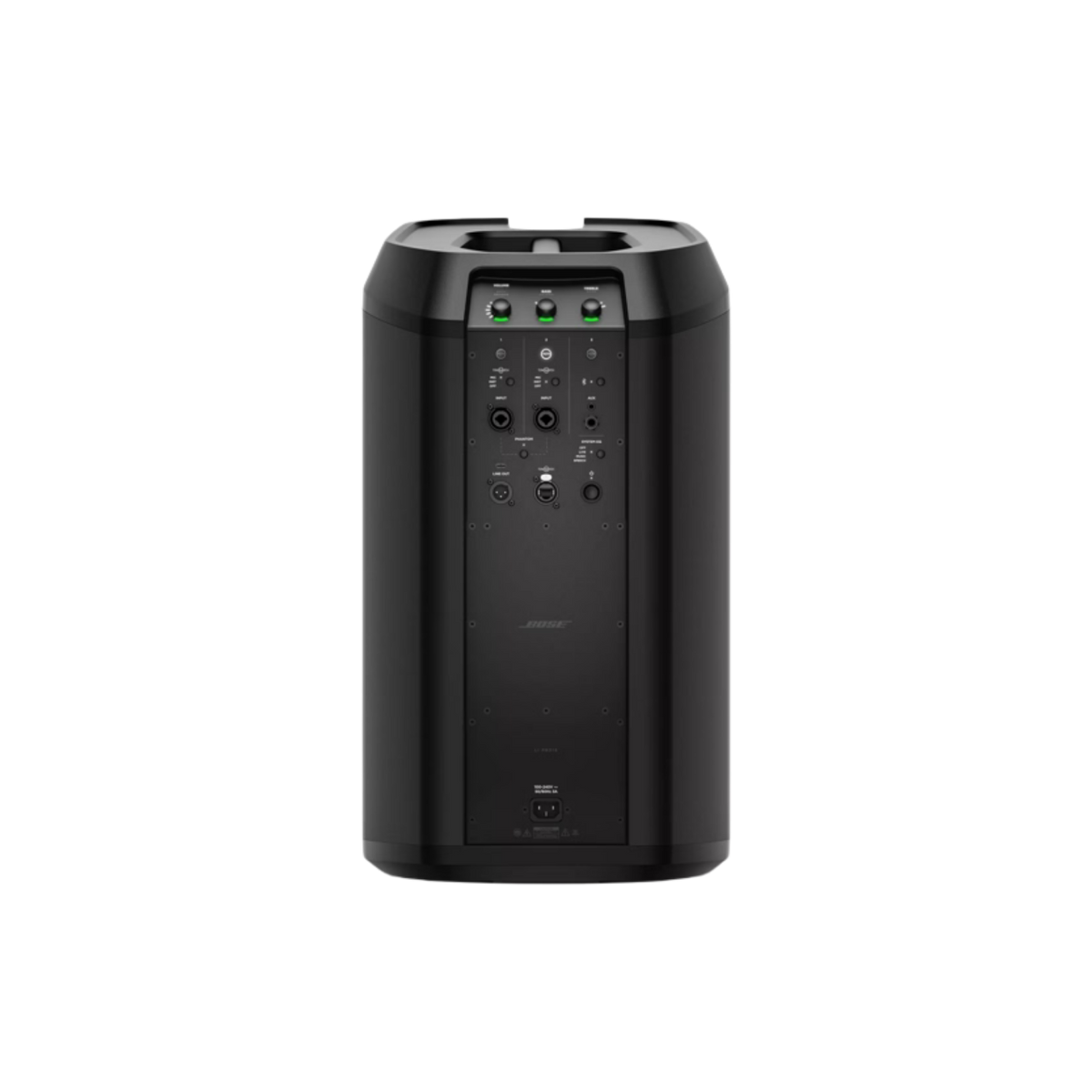

Onboard Multi-Channel Mixer: Built-in 3-channel digital mixer provides XLR-1/4" combo inputs, phantom power, system EQ presets, and reverb.

Complete Wireless Control: Stream high-quality audio via Bluetooth® and adjust mixer levels dynamically with the intuitive L1 Mix smartphone app.

Bose L1 Pro16 Portable Line Array System

Please feel free to reach out to our knowledgeable sales staff with any additional questions!
